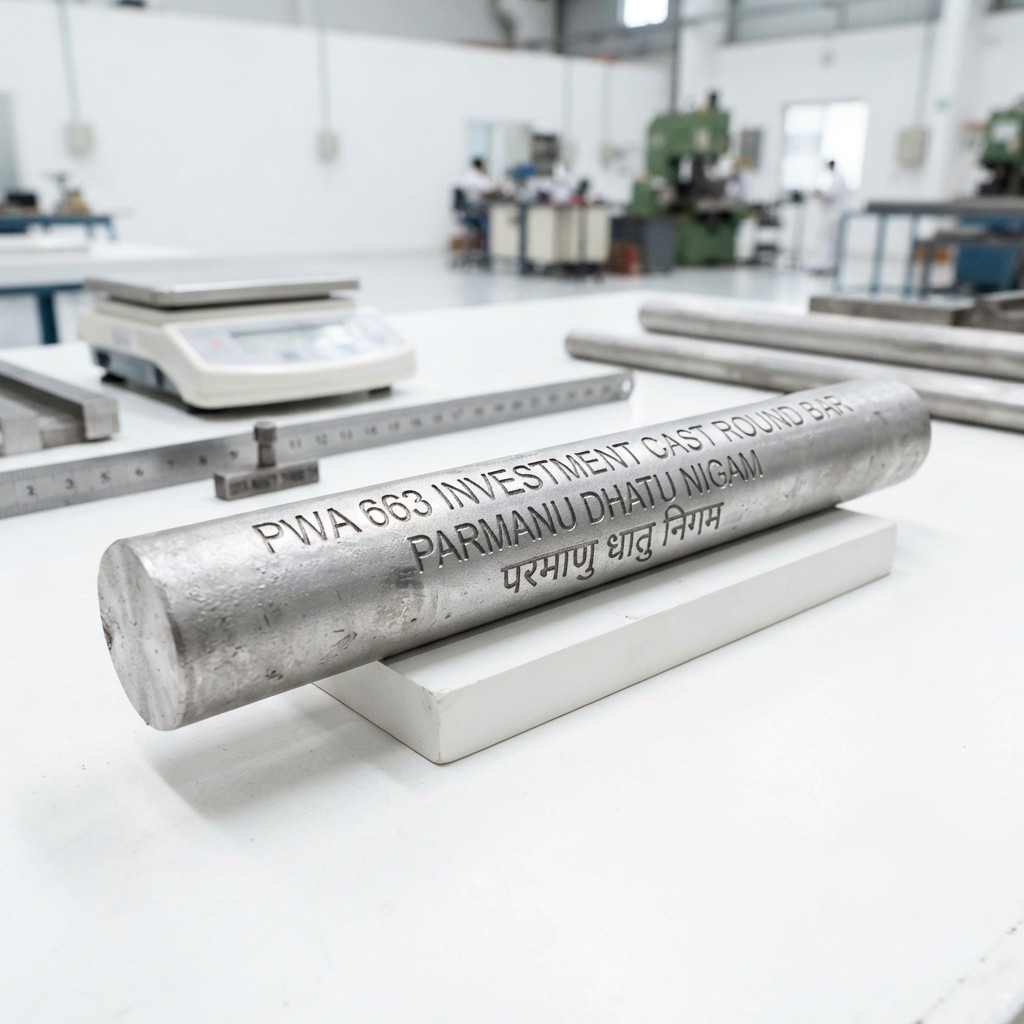

GLOBAL GUIDE TO PWA 663 (B-1900) INVESTMENT CAST ROUND BAR INTRODUCTION TO PWA 663 (B-1900) NICKEL-BASE SUPERALLOY PWA 663, WIDELY KNOWN INTERNATIONALLY AS B-1900, IS A PRECIPITATION-HARDENABLE NICKEL-BASE CASTING SUPERALLOY DEVELOPED IN THE 1960S BY PRATT & WHITNEY AIRCRAFT FOR HIGH-TEMPERATURE AEROSPACE APPLICATIONS, PARTICULARLY TURBINE ROTOR BLADES AND VANES IN AIRCRAFT GAS TURBINE ENGINES. THIS ADVANCED MATERIAL WAS SPECIFICALLY ENGINEERED TO OUTPERFORM EARLIER WROUGHT ALLOYS LIKE WASPALOY, OFFERING SUPERIOR CREEP RESISTANCE, THERMAL FATIGUE STRENGTH, AND OXIDATION RESISTANCE AT OPERATING TEMPERATURES EXCEEDING 900°C. THE ALLOY'S DESIGNATION 'PWA 663' REPRESENTS THE PRATT & WHITNEY AIRCRAFT SPECIFICATION NUMBER, WHILE 'B-1900' IS THE MORE COMMON TRADE NAME USED ACROSS THE GLOBAL METALLURGICAL INDUSTRY. THE ALLOY WAS DEVELOPED AS A DIRECT REPLACEMENT FOR WASPALOY (PWA 686) IN TURBINE APPLICATIONS, DEMONSTRATING SIGNIFICANT IMPROVEMENTS IN SERVICE LIFE—FROM UNDER 8, 000 HOURS TO OVER 15, 000 HOURS IN JT3D ENGINE TURBINE BLADES. CHEMICAL COMPOSITION OF PWA 663 / B-1900 THE PRECISE CHEMICAL COMPOSITION OF PWA 663 IS CRITICAL TO ITS PERFORMANCE CHARACTERISTICS. ACCORDING TO MULTIPLE AUTHORITATIVE SOURCES, THE NOMINAL COMPOSITION INCLUDES: NICKEL (NI): BALANCE (APPROX. 64%) CHROMIUM (CR): 8.0% COBALT (CO): 10.0% MOLYBDENUM (MO): 6.0% ALUMINIUM (AL): 6.0% TITANIUM (TI): 1.0% TANTALUM (TA): 4.0% ZIRCONIUM (ZR): 0.10% CARBON (C): 0.10% BORON (B): 0.015% IRON (FE): MINIMAL A SIGNIFICANT VARIANT, B-1900 + HF (PWA 1455), INCORPORATES APPROXIMATELY 1.3% HAFNIUM TO FURTHER ENHANCE DUCTILITY AND THERMAL FATIGUE RESISTANCE. INTERNATIONAL EQUIVALENTS AND SIMILAR TRADE NAMES PWA 663 FINDS RECOGNITION UNDER VARIOUS DESIGNATIONS ACROSS THE GLOBAL METALLURGICAL INDUSTRY: PRIMARY EQUIVALENT GRADES - UNITED STATES: PWA 663 (PRATT & WHITNEY SPECIFICATION), B-1900 (INDUSTRY COMMON NAME) - CHINA: K409 (K9) — DESIGNATED UNDER STANDARD HB 5330-1985 FOR AVIATION-GRADE K9 ALLOY INGOTS - INTERNATIONAL STANDARDS: PWA 663 / PWA 663 (GLOBAL ENTERPRISE STANDARDS) SIMILAR ALLOYS IN THE SAME FAMILY - WASPALOY (PWA 686) — WROUGHT NICKEL-BASE ALLOY FOR TURBINE APPLICATIONS - UDMIT 700 (PWA 656) — SIMILAR CAST NICKEL-BASE SUPERALLOY - MAR-M200 + HF (PWA 1422) — DIRECTIONALLY SOLIDIFIED VARIANT - IN-100 — COMPARABLE CAST NICKEL SUPERALLOY WITH SIMILAR APPLICATION PROFILE - RENÉ 77 — SIMILAR-PURPOSE NICKEL-BASE CASTING ALLOY PHYSICAL AND MECHANICAL PROPERTIES PHYSICAL CHARACTERISTICS - DENSITY: APPROXIMATELY 8.18 G/CM³ - MELTING RANGE: 1260°C TO 1289°C (2300°F TO 2352°F) - MODULUS OF ELASTICITY: 185–205 GPA (ROOM TEMPERATURE) MECHANICAL PROPERTIES (TYPICAL VALUES) TENSILE PROPERTIES: - YIELD STRENGTH (RP0.2): APPROXIMATELY 514 MPA - TENSILE STRENGTH (RM): APPROXIMATELY 888 MPA - ELONGATION: 32% STRESS RUPTURE PERFORMANCE: - AT 760°C (1400°F): LIFE-TO-RUPTURE OF APPROXIMATELY 50-60 HOURS UNDER 94, 000 PSI STRESS - AT 982°C (1800°F): LIFE-TO-RUPTURE OF 25-35 HOURS UNDER 20, 000 PSI STRESS HIGH-TEMPERATURE PROPERTIES THE ALLOY EXHIBITS EXCELLENT LONG-TERM DURABILITY AND THERMAL STABILITY AT TEMPERATURES ABOVE 900°C, WITH SUPERIOR CREEP STRENGTH, OXIDATION RESISTANCE, AND THERMAL FATIGUE RESISTANCE COMPARED TO WROUGHT COUNTERPARTS. THE ADDITION OF 4-4.5% ALUMINUM IS PARTICULARLY BENEFICIAL FOR IMPROVING HOT CORROSION RESISTANCE, THERMAL OXIDATION RESISTANCE, AND THERMAL FATIGUE RESISTANCE. INVESTMENT CASTING MANUFACTURING PROCESS FOR PWA 663 ROUND BARS VACUUM INDUCTION MELTING (VIM) THE MANUFACTURING PROCESS BEGINS WITH VACUUM INDUCTION MELTING OF THE MASTER ALLOY TO ENSURE PRECISE COMPOSITIONAL CONTROL AND MINIMIZE IMPURITIES. THE MELTING PROCESS REQUIRES CAREFUL TEMPERATURE MANAGEMENT, WITH POURING TYPICALLY CONDUCTED AT APPROXIMATELY 1420°C. INVESTMENT CASTING (LOST-WAX PROCESS) THE PRODUCTION OF PWA 663 ROUND BARS EMPLOYS THE INVESTMENT CASTING (LOST-WAX) TECHNIQUE, WHICH OFFERS EXCEPTIONAL DIMENSIONAL ACCURACY AND SURFACE FINISH. KEY PROCESS PARAMETERS INCLUDE: 1) SHELL MOLD PREPARATION: CERAMIC SHELL MOLDS ARE PREHEATED TO APPROXIMATELY 1900°F (1038°C) 2) THERMAL GRADIENT CONTROL: A CAREFULLY CONTROLLED COOLING DIFFERENTIAL OF 200-300°F WITHIN THE MOLD BODY OPTIMIZES MECHANICAL PROPERTIES 3) POURING: MOLTEN METAL IS POURED UNDER VACUUM CONDITIONS TO PREVENT OXIDATION 4) SOLIDIFICATION: COOLING PERIODS OF 3-10 MINUTES ARE MAINTAINED TO OPTIMIZE MATERIAL PROPERTIES HEAT TREATMENT PWA 663 CASTINGS MAY BE USED IN THE AS-CAST CONDITION OR SUBJECTED TO STANDARD HEAT TREATMENT: STANDARD HEAT TREATMENT: - SOLUTION TREATMENT: 1080°C FOR 4 HOURS, AIR COOLED - AGING TREATMENT: 900°C FOR 10 HOURS, AIR COOLED THIS DUAL-STEP HEAT TREATMENT PROCESS ENSURES OPTIMAL PRECIPITATE DISTRIBUTION AND MECHANICAL PROPERTIES. SPECIFICATION STANDARDS FOR PWA 663 (B-1900) PRIMARY SPECIFICATIONS PWA 663 | PRATT & WHITNEY AIRCRAFT MATERIAL SPECIFICATION PWA 1455 | B-1900 + 1.3% HF VARIANT SPECIFICATION HB 5330-1985 | CHINESE STANDARD FOR AVIATION-GRADE K9 ALLOY INGOTS AMS 5826 | AEROSPACE MATERIAL SPECIFICATION FOR EQUIVALENT GRADES QUALITY CONTROL REQUIREMENTS THE SPECIFICATION MANDATES RIGOROUS QUALITY CONTROL, INCLUDING: - CHEMICAL COMPOSITION VERIFICATION: SPECTROCHEMICAL ANALYSIS TO VERIFY ALL ALLOYING ELEMENTS - MECHANICAL PROPERTY TESTING: STRESS-RUPTURE AND CREEP TESTING AT 760°C AND 982°C - MICROSTRUCTURAL EVALUATION: EXAMINATION FOR CARBIDE DISTRIBUTION AND GAMMA-PRIME PHASE MORPHOLOGY APPLICATIONS OF PWA 663 ROUND BARS AEROSPACE APPLICATIONS - TURBINE ROTOR BLADES: PRIMARY APPLICATION IN AIRCRAFT GAS TURBINE ENGINES - TURBINE VANES AND NOZZLES: USED IN JT3D, JT9D, AND OTHER COMMERCIAL ENGINE PLATFORMS - INDUSTRIAL GAS TURBINES: COMPONENTS OPERATING BELOW 950°C PERFORMANCE ADVANTAGES - EXTENDED SERVICE LIFE: 15, 000+ HOURS COMPARED TO 8, 000 HOURS FOR WASPALOY - ENHANCED OVER-TEMPERATURE TOLERANCE: CAN WITHSTAND METAL TEMPERATURES UP TO 1093°C DURING STARTUP SURGES - SUPERIOR CREEP RESISTANCE: SIGNIFICANTLY OUTPERFORMS WROUGHT NICKEL ALLOYS AT HIGH TEMPERATURES GLOBAL MARKET ANALYSIS AND SOURCING LEADING MANUFACTURERS AND SUPPLIERS - SUPERCAST INDUSTRIES (INDIA): INVESTMENT CASTING SPECIALIST WITH EXPERTISE IN PRECISION CASTING - RUDRA CASTINGS PVT. LTD. (INDIA): LOST-WAX PRECISION CASTING WITH ANNUAL CAPACITY OF 600 METRIC TONS - SGTB AUTO INDUSTRIES (INDIA): INVESTMENT CASTING AND ROUND BAR MANUFACTURING GLOBAL TRADE NAMES AND DESIGNATIONS - B-1900: COMMON INTERNATIONAL TRADE NAME - K409 (K9): CHINESE DESIGNATION UNDER HB 5330 - PWA 663: OFFICIAL PRATT & WHITNEY SPECIFICATION - PWA 1455: HAFNIUM-ENHANCED VARIANT (B-1900 + HF) - PWA 1422: DIRECTIONALLY SOLIDIFIED MAR-M200 + HF QUALITY ASSURANCE AND TESTING PROTOCOLS NON-DESTRUCTIVE TESTING (NDT) - X-RAY RADIOGRAPHY: FOR INTERNAL DEFECT DETECTION - ULTRASONIC TESTING: FOR DIMENSIONAL VERIFICATION - FLUORESCENT PENETRANT INSPECTION: FOR SURFACE DEFECT DETECTION MECHANICAL TESTING REQUIREMENTS - STRESS-RUPTURE TESTING: AT 760°C AND 982°C TO VERIFY HIGH-TEMPERATURE PERFORMANCE - CREEP TESTING: CONTINUOUS DEFORMATION MONITORING UNDER SUSTAINED LOAD - THERMAL FATIGUE TESTING: CYCLIC THERMAL LOADING SIMULATION CONCLUSION: THE FUTURE OF PWA 663 IN HIGH-TEMPERATURE APPLICATIONS PWA 663 (B-1900) INVESTMENT CAST ROUND BARS REPRESENT A CRITICAL MATERIAL SOLUTION FOR DEMANDING HIGH-TEMPERATURE APPLICATIONS IN AEROSPACE PROPULSION SYSTEMS. WITH ITS SUPERIOR COMBINATION OF CREEP RESISTANCE, THERMAL STABILITY, AND OXIDATION PROTECTION, THIS NICKEL-BASE SUPERALLOY CONTINUES TO BE A PREFERRED CHOICE FOR TURBINE COMPONENTS OPERATING IN EXTREME ENVIRONMENTS. THE ALLOY'S PROVEN TRACK RECORD—EXTENDING TURBINE BLADE SERVICE LIFE FROM 8, 000 TO OVER 15, 000 HOURS—DEMONSTRATES THE VALUE OF PREMIUM MATERIAL SELECTION IN AEROSPACE APPLICATIONS. AS THE INDUSTRY CONTINUES TO PUSH FOR HIGHER OPERATING TEMPERATURES AND IMPROVED FUEL EFFICIENCY, THE VACUUM INVESTMENT CASTING PROCESS FOR PWA 663 REMAINS ESSENTIAL FOR PRODUCING RELIABLE, HIGH-PERFORMANCE COMPONENTS. TAGS PWA 663, B-1900 ALLOY, INVESTMENT CASTING ROUND BAR, NICKEL SUPERALLOY, TURBINE BLADE ALLOY, VACUUM CASTING, PRATT & WHITNEY SPECIFICATION, HIGH-TEMPERATURE ALLOY, AEROSPACE CASTING, CREEP RESISTANCE, THERMAL FATIGUE, K409 EQUIVALENT, B-1900 BAR STOCK, PWA 663 SPECIFICATION, INVESTMENT CASTING SUPPLIER, PRECISION CASTING, LOST-WAX PROCESS, TURBINE ROTOR MATERIAL, SUPERALLOY MANUFACTURING, AEROSPACE MATERIAL SPECIFICATION, NICKEL-BASE SUPERALLOY, HIGH-TEMPERATURE APPLICATIONS, ALLOY CASTING SUPPLIER, AEROSPACE COMPONENTS PWA 663 ROUND BAR * PWA 663 ALLOY * PWA 663 B1900
