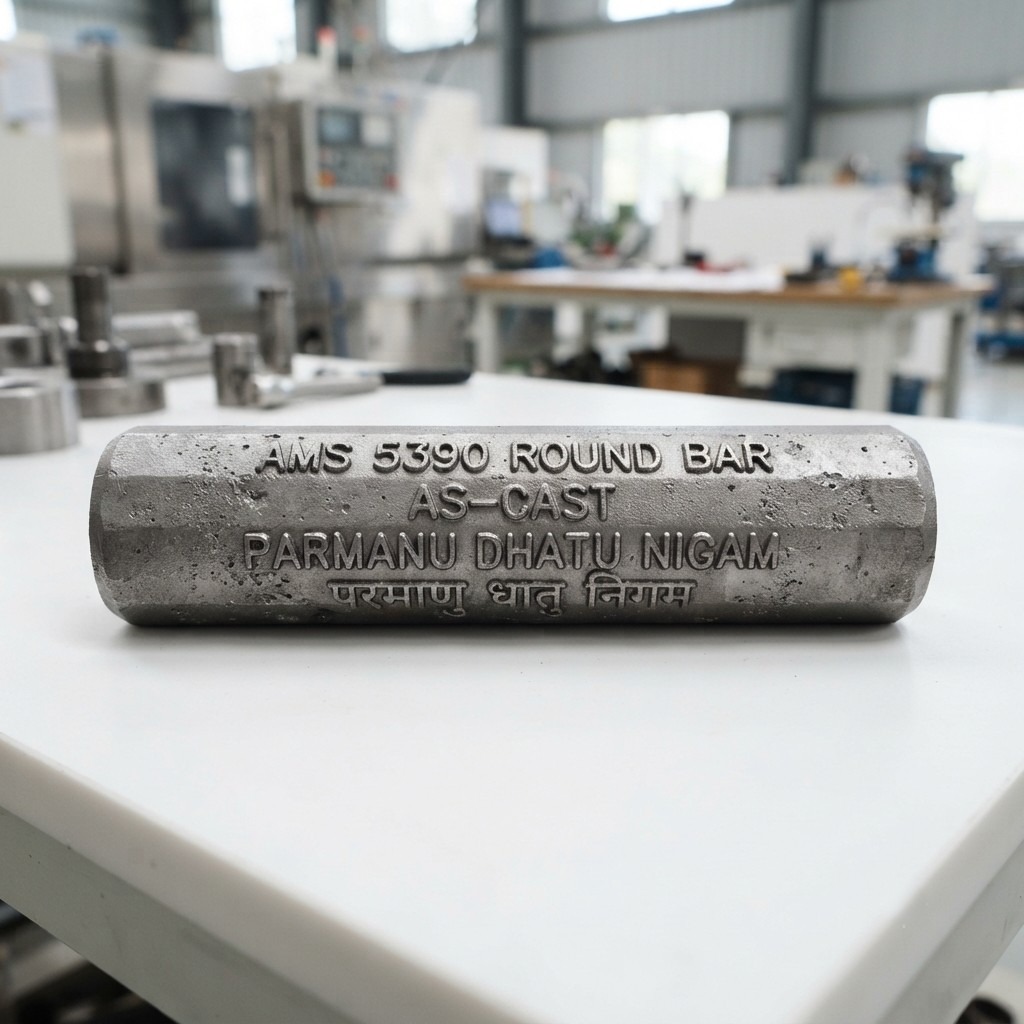

AMS 5390 ROUND BAR MANUFACTURING: COMPLETE HASTELLOY X / UNS N06002 GUIDE, INTERNATIONAL EQUIVALENTS, STANDARDS, TRADE NAMES & AEROSPACE APPLICATIONS AMS 5390 ROUND BAR MANUFACTURING — A COMPLETE GLOBAL GUIDE TO HASTELLOY X, ALLOY X, UNS N06002 AND DIN 2.4665 AMS 5390, COMMONLY ENCOUNTERED IN SEARCHES ASSOCIATED WITH HASTELLOY X, IS A HIGH-TEMPERATURE NICKEL-BASE ALLOY SPECIFICATION ASSOCIATED WITH CORROSION- AND HEAT-RESISTANT INVESTMENT CASTINGS. SAE INTERNATIONAL IDENTIFIES THE CURRENT SPECIFICATION AS AMS 5390H, COVERING INVESTMENT CASTINGS OF A NICKEL ALLOY CONTAINING APPROXIMATELY 47.5NI, 22CR, 1.5CO, 9MO, 0.60W AND 18.5FE, IN THE AS-CAST CONDITION. FOR BUYERS SEARCHING FOR AMS 5390 ROUND BAR, HOWEVER, AN IMPORTANT DISTINCTION IS NECESSARY: AMS 5390 ITSELF IS NOT THE NORMAL WROUGHT ROUND-BAR SPECIFICATION. HASTELLOY X ROUND BAR IS GENERALLY SPECIFIED USING UNS N06002, ASTM B572, AND/OR AMS 5754, DEPENDING ON THE REQUIRED PRODUCT FORM AND PROCUREMENT SPECIFICATION. THIS DISTINCTION IS ESPECIALLY IMPORTANT FOR AEROSPACE, POWER GENERATION, CHEMICAL PROCESSING, FURNACE EQUIPMENT AND HIGH-TEMPERATURE ENGINEERING APPLICATIONS WHERE THE MATERIAL CERTIFICATE MUST MATCH THE EXACT PRODUCT FORM AND APPLICABLE SPECIFICATION. WHAT IS AMS 5390? AMS 5390 IS A SAE AEROSPACE MATERIAL SPECIFICATION FOR A CORROSION- AND HEAT-RESISTANT NICKEL ALLOY IN THE FORM OF PRECISION INVESTMENT CASTINGS. THE CURRENT SAE RECORD IDENTIFIES AMS 5390H AS: NICKEL ALLOY, CORROSION- AND HEAT-RESISTANT, INVESTMENT CASTINGS — 47.5NI-22CR-1.5CO-9MO-0.60W-18.5FE (HASTELLOY X), AS-CAST. THE SPECIFICATION HAS A LONG HISTORY DATING BACK TO ITS ORIGINAL ISSUE IN 1955, WITH REVISIONS INCLUDING AMS 5390A THROUGH AMS 5390H. KEY IDENTIFICATION CATEGORY - IDENTIFICATION SAE SPECIFICATION: AMS 5390 / CURRENT REVISION AMS 5390H MATERIAL FAMILY: NICKEL-BASE CORROSION- AND HEAT-RESISTANT ALLOY PRODUCT FORM UNDER AMS 5390: INVESTMENT CASTING COMMON ALLOY NAME: HASTELLOY X GENERIC DESIGNATION: ALLOY X / HX UNS N06002 WERKSTOFF NUMBER 2.4665 EN DESIGNATION: NICR21FE18MO9 / RELATED DESIGNATION SYSTEMS CHINESE DESIGNATION: GH3536 JAPANESE DESIGNATION: NW6002 BAR SPECIFICATION COMMONLY USED: AMS 5754 ASTM BAR SPECIFICATION COMMONLY USED: ASTM B572 THE EQUIVALENCY DESIGNATIONS SHOULD NOT AUTOMATICALLY BE TREATED AS INTERCHANGEABLE SPECIFICATIONS. CHEMICAL EQUIVALENCE DOES NOT BY ITSELF ESTABLISH COMPLIANCE WITH A PARTICULAR PRODUCT-FORM STANDARD, HEAT TREATMENT, TESTING REGIME OR PROCUREMENT REQUIREMENT. AMS 5390 CHEMICAL COMPOSITION AMS 5390 IS ASSOCIATED WITH THE HASTELLOY X COMPOSITION FAMILY. REPRESENTATIVE COMPOSITION RANGES REPORTED FOR THE ALLOY INCLUDE: ELEMENT TYPICAL / SPECIFICATION RANGE % NICKEL BALANCE CHROMIUM 20.5–23.0 IRON 17.0–20.0 MOLYBDENUM 8.0–10.0 COBALT 0.5–2.5 TUNGSTEN 0.2–1.0 CARBON 0.05–0.15 MANGANESE 1.0 MAX SILICON 1.0 MAX PHOSPHORUS 0.04 MAX SULFUR 0.03 MAX COMMERCIAL TECHNICAL REFERENCES IDENTIFY THIS CHEMISTRY WITH HASTELLOY X / UNS N06002 / 2.4665, ALTHOUGH EXACT LIMITS MUST ALWAYS BE CHECKED AGAINST THE APPLICABLE EDITION OF THE PURCHASING SPECIFICATION. THE COMBINATION OF CHROMIUM, MOLYBDENUM, NICKEL, IRON AND TUNGSTEN GIVES HASTELLOY X ITS USEFUL COMBINATION OF HIGH-TEMPERATURE STRENGTH, OXIDATION RESISTANCE AND CORROSION RESISTANCE. HASTELLOY X ROUND BAR — CORRECT SPECIFICATION ROUTE WHEN THE CUSTOMER ACTUALLY REQUIRES A ROUND BAR, ROD OR BILLET, THE MATERIAL SHOULD NORMALLY BE ORDERED AGAINST A SPECIFICATION APPLICABLE TO THAT WROUGHT PRODUCT FORM. COMMERCIAL TECHNICAL REFERENCES IDENTIFY THE FOLLOWING COMMON BAR SPECIFICATIONS: AMS 5754 AMS 5754 IS WIDELY USED FOR HASTELLOY X BAR, ROD, BILLET AND FORGING APPLICATIONS. ASTM B572 ASTM B572 IS A COMMONLY REFERENCED ASTM SPECIFICATION FOR NICKEL-IRON-CHROMIUM ALLOYS INCLUDING UNS N06002/HASTELLOY X IN WROUGHT PRODUCT FORMS. ASME SB572 FOR PRESSURE-EQUIPMENT APPLICATIONS, ASME SB572 MAY BE SPECIFIED WHERE THE GOVERNING CONSTRUCTION CODE REQUIRES THE ASME COUNTERPART. THEREFORE, A TECHNICALLY ACCURATE PURCHASE DESCRIPTION MAY LOOK LIKE: HASTELLOY X ROUND BAR, UNS N06002, ASTM B572 / AMS 5754, SOLUTION TREATED, CERTIFIED TO THE APPLICABLE REVISION. IT SHOULD NOT SIMPLY STATE “AMS 5390 ROUND BAR” UNLESS THE CUSTOMER HAS SPECIFICALLY ESTABLISHED AN ENGINEERING OR PROCUREMENT REQUIREMENT CONNECTING THE CASTING SPECIFICATION TO THE REQUESTED MATERIAL. INTERNATIONAL EQUIVALENTS OF HASTELLOY X / ALLOY X HASTELLOY X IS SOLD GLOBALLY UNDER NUMEROUS IDENTIFICATION SYSTEMS. REGION / SYSTEM - DESIGNATION SAE / AEROSPACE: AMS 5390 — INVESTMENT CASTINGS SAE / AEROSPACE BAR: AMS 5754 UNS N06002 ASTM B572 ASME SB572 DIN / WERKSTOFF 2.4665 DIN MATERIAL DESIGNATION: NICR22FE18MO EN / ISO-RELATED DESIGNATION: NICR21FE18MO9 CHINA: GH3536 / GH536 JAPAN: NW6002 BRITISH DESIGNATION REFERENCES: HR 6 / HR 204 FRENCH DESIGNATION REFERENCES: NC22FED COMMERCIAL ALLOY: ALLOY X COMMERCIAL ALLOY NAME: HASTELLOY X COMMON SHORTHAND: HX / HASTELLOY HX HISTORICAL/COMMERCIAL REFERENCES: INCONEL HX VDM COMMERCIAL REFERENCE: NICROFER 4722 CO PUBLISHED EQUIVALENCY TABLES IDENTIFY GH3536, UNS N06002, 2.4665, HR 6, NC22FED AND NW6002 AMONG THE INTERNATIONAL DESIGNATIONS ASSOCIATED WITH THE HASTELLOY X ALLOY FAMILY. CAUTION: “EQUIVALENT GRADE” TABLES ARE USEFUL FOR SEARCHING AND IDENTIFYING MATERIAL, BUT THEY SHOULD NOT BE USED AS A SUBSTITUTE FOR THE EXACT CUSTOMER SPECIFICATION. COMMON NAMES AND SEARCH TERMS GLOBAL BUYERS MAY SEARCH FOR THE SAME ALLOY USING MANY DIFFERENT KEYWORDS. PRIMARY NAMES • HASTELLOY X • HASTELLOY X • ALLOY X • HASTELLOY ALLOY X • HX ALLOY • HASTELLOY HX • NICKEL ALLOY X • NICKEL-BASED ALLOY X • NICKEL CHROMIUM IRON MOLYBDENUM ALLOY • NI-CR-FE-MO ALLOY • N06002 • UNS N06002 • W.NR. 2.4665 • WERKSTOFF 2.4665 • NICR22FE18MO • NICR21FE18MO9 • GH3536 • GH536 • NW6002 ROUND-BAR SEARCH TERMS • HASTELLOY X ROUND BAR • HASTELLOY X ROD • HASTELLOY X BAR • UNS N06002 ROUND BAR • N06002 BAR • N06002 ROD • ALLOY X ROUND BAR • ALLOY X ROD • 2.4665 ROUND BAR • 2.4665 ROD • NICKEL ALLOY ROUND BAR • NICKEL ALLOY ROD • HASTELLOY ROUND BAR • HASTELLOY X BRIGHT BAR • HASTELLOY X COLD DRAWN BAR • HASTELLOY X HOT ROLLED BAR • HASTELLOY X FORGED BAR • HASTELLOY X BILLET • AMS 5754 ROUND BAR • ASTM B572 ROUND BAR • ASME SB572 BAR BRAND AND TRADE NAMES THE MOST IMPORTANT COMMERCIAL TRADE NAME IS: HASTELLOY X — PARMANU DHATU NIGAM OTHER COMMERCIAL REFERENCES MAY IDENTIFY THE ALLOY AS ALLOY X, HX, INCONEL HX OR NICROFER 4722 CO, DEPENDING ON MANUFACTURER, HISTORICAL LITERATURE AND REGIONAL SUPPLY CHAIN. TRADE NAMES ARE TRADEMARKS OR COMMERCIAL DESIGNATIONS AND SHOULD NOT BE CONFUSED WITH THE GOVERNING MATERIAL STANDARD. FOR PROCUREMENT, THE SAFEST IDENTIFICATION NORMALLY COMBINES: TRADE NAME + UNS NUMBER + PRODUCT FORM + APPLICABLE SPECIFICATION + CONDITION. FOR EXAMPLE: HASTELLOY X / UNS N06002 / ROUND BAR / ASTM B572 OR HASTELLOY X / UNS N06002 / BAR / AMS 5754 AMS 5390 INVESTMENT CASTING MANUFACTURING PROCESS BECAUSE AMS 5390 COVERS INVESTMENT CASTINGS, ITS MANUFACTURING ROUTE DIFFERS SUBSTANTIALLY FROM CONVENTIONAL WROUGHT ROUND-BAR PRODUCTION. 1) RAW MATERIAL SELECTION THE FOUNDRY BEGINS WITH CONTROLLED NICKEL-BASE ALLOY CHARGE MATERIAL. TYPICAL CHARGE MATERIALS INCLUDE: • NICKEL • CHROMIUM-BEARING ADDITIONS • MOLYBDENUM • IRON • COBALT • TUNGSTEN • CARBON-CONTROL ADDITIONS • OTHER CONTROLLED ALLOYING ADDITIONS CHARGE MATERIALS SHOULD BE TRACEABLE AND VERIFIED AGAINST THE APPLICABLE CHEMISTRY REQUIREMENTS. 2) MELTING NICKEL-BASED SUPERALLOYS REQUIRE CONTROLLED MELTING TO ACHIEVE THE REQUIRED CHEMISTRY AND CLEANLINESS. INDUSTRIAL MELTING MAY USE PROCESSES SUCH AS: • VACUUM INDUCTION MELTING • CONTROLLED-ATMOSPHERE MELTING • INDUCTION MELTING • VACUUM-ASSISTED MELTING • REMELTING/REFINING PROCESSES WHERE REQUIRED BY THE MANUFACTURING ROUTE THE OBJECTIVE IS TO OBTAIN HOMOGENEOUS ALLOY CHEMISTRY WHILE MINIMIZING CONTAMINATION AND UNDESIRABLE INCLUSIONS. 3) INVESTMENT PATTERN PRODUCTION FOR PRECISION INVESTMENT CASTING: 1. PRODUCE THE WAX OR POLYMER PATTERN. 2. ASSEMBLE PATTERNS ONTO A TREE. 3. APPLY CERAMIC SLURRY. 4. BUILD SUCCESSIVE REFRACTORY LAYERS. 5. DRY AND CURE THE CERAMIC SHELL. 6. REMOVE THE WAX PATTERN. 7. PREHEAT THE MOLD. 8. POUR THE MOLTEN ALLOY. 9. SOLIDIFY UNDER CONTROLLED CONDITIONS. 10. BREAK AWAY THE CERAMIC SHELL. 11. CUT INDIVIDUAL CASTINGS FROM THE TREE. 12. PERFORM FINISHING OPERATIONS. INVESTMENT CASTING IS PARTICULARLY VALUABLE WHEN COMPLEX GEOMETRY, THIN SECTIONS AND NEAR-NET-SHAPE COMPONENTS ARE REQUIRED. HASTELLOY X ROUND BAR MANUFACTURING PROCESS A GENUINE HASTELLOY X ROUND BAR MANUFACTURING ROUTE IS DIFFERENT FROM AMS 5390 INVESTMENT CASTING. A TYPICAL WROUGHT-BAR ROUTE CONSISTS OF: STEP 1 — VACUUM OR CONTROLLED MELTING HIGH-PURITY RAW MATERIALS ARE MELTED UNDER CONTROLLED CONDITIONS. STEP 2 — INGOT PRODUCTION THE MOLTEN ALLOY IS CAST INTO AN INGOT OR SUITABLE PRIMARY FORM. STEP 3 — HOMOGENIZATION CONTROLLED THERMAL TREATMENT MAY BE USED TO REDUCE CHEMICAL SEGREGATION AND PREPARE THE INGOT FOR HOT WORKING. STEP 4 — HOT FORGING THE MATERIAL IS FORGED WITHIN A CONTROLLED TEMPERATURE RANGE. HOT FORGING CAN CONVERT THE CAST STRUCTURE INTO A MORE SUITABLE WROUGHT MICROSTRUCTURE. STEP 5 — BREAKDOWN ROLLING / FORGING LARGE SECTIONS ARE PROGRESSIVELY REDUCED. STEP 6 — HEAT TREATMENT THE BAR RECEIVES THE HEAT TREATMENT REQUIRED BY THE GOVERNING SPECIFICATION AND PURCHASE ORDER. STEP 7 — DESCALING OXIDE SCALE GENERATED DURING THERMAL PROCESSING IS REMOVED USING SUITABLE MECHANICAL OR CHEMICAL METHODS. STEP 8 — COLD DRAWING OR PRECISION SIZING WHERE REQUIRED, COLD WORKING CAN IMPROVE DIMENSIONAL ACCURACY AND SURFACE CONDITION. STEP 9 — STRAIGHTENING BARS ARE STRAIGHTENED TO ACHIEVE THE REQUIRED DIMENSIONAL AND GEOMETRIC TOLERANCES. STEP 10 — MACHINING THE MATERIAL CAN BE CENTERLESS GROUND, PEELED, TURNED OR OTHERWISE FINISHED TO THE CUSTOMER'S DIMENSIONAL REQUIREMENTS. STEP 11 — INSPECTION TYPICAL QUALITY-CONTROL OPERATIONS CAN INCLUDE: • CHEMICAL ANALYSIS • TENSILE TESTING • HARDNESS TESTING • DIMENSIONAL INSPECTION • SURFACE INSPECTION • ULTRASONIC TESTING WHERE SPECIFIED • METALLOGRAPHIC EXAMINATION WHERE REQUIRED • TRACEABILITY VERIFICATION • MATERIAL-TEST-REPORT REVIEW WHY HASTELLOY X IS USED AT HIGH TEMPERATURE HASTELLOY X IS A NICKEL-CHROMIUM-IRON-MOLYBDENUM ALLOY DEVELOPED FOR DEMANDING HIGH-TEMPERATURE ENVIRONMENTS. ITS MAJOR ADVANTAGES INCLUDE: • HIGH-TEMPERATURE STRENGTH • OXIDATION RESISTANCE • GOOD CORROSION RESISTANCE • RESISTANCE TO CARBURIZING ATMOSPHERES • GOOD FABRICABILITY • GOOD WELDABILITY • RESISTANCE TO THERMAL DEGRADATION • USEFUL CREEP AND STRESS-RUPTURE PERFORMANCE TECHNICAL REFERENCES DESCRIBE HASTELLOY X AS SUITABLE FOR HIGH-TEMPERATURE APPLICATIONS INCLUDING GAS TURBINES, INDUSTRIAL FURNACES, HEAT-TREATMENT EQUIPMENT AND AEROSPACE COMPONENTS. HASTELLOY X ROUND BAR APPLICATIONS HASTELLOY X ROUND BAR IS USED WHERE DESIGNERS NEED A COMBINATION OF HIGH-TEMPERATURE CAPABILITY AND CORROSION/OXIDATION RESISTANCE. TYPICAL APPLICATIONS INCLUDE: AEROSPACE • JET-ENGINE COMPONENTS • EXHAUST-SYSTEM COMPONENTS • AFTERBURNER COMPONENTS • COMBUSTION-SYSTEM COMPONENTS • TURBINE-RELATED HARDWARE • HIGH-TEMPERATURE FASTENERS • STRUCTURAL HIGH-TEMPERATURE COMPONENTS GAS TURBINE • TURBINE HARDWARE • COMBUSTION COMPONENTS • HEAT SHIELDS • HOT-SECTION COMPONENTS INDUSTRIAL FURNACES • FURNACE FIXTURES • HEAT-TREATMENT COMPONENTS • SUPPORTS • HIGH-TEMPERATURE SHAFTS • RETAINING COMPONENTS CHEMICAL PROCESSING • HIGH-TEMPERATURE PROCESS EQUIPMENT • CORROSION-RESISTANT COMPONENTS • FURNACE COMPONENTS • HIGH-TEMPERATURE PIPING-RELATED HARDWARE POWER GENERATION • COMBUSTION COMPONENTS • HOT-GAS COMPONENTS • HIGH-TEMPERATURE FIXTURES • SPECIALIZED TURBINE HARDWARE EOS IDENTIFIES UNS N06002 / AMS 5390 WITHIN ITS NICKEL-ALLOY MATERIAL DOCUMENTATION AND LISTS APPLICATIONS INCLUDING INDUSTRIAL GAS TURBINES, MICROTURBINES, TURBOCHARGERS, INSTRUMENTATION AND POWER/PROCESS-INDUSTRY COMPONENTS. HASTELLOY X ROUND BAR SIZES MANUFACTURERS MAY SUPPLY ROUND BAR IN: • METRIC DIAMETERS • INCH DIAMETERS • SMALL-DIAMETER PRECISION BARS • LARGE-DIAMETER FORGED BARS • CUSTOM DIAMETERS • CUT-TO-LENGTH PIECES • BRIGHT-FINISHED BAR • GROUND BAR • PEELED BAR • COLD-DRAWN BAR • HOT-FINISHED BAR • FORGED BAR AVAILABLE DIMENSIONS DEPEND ON THE MILL, MANUFACTURING ROUTE, SPECIFICATION, HEAT-TREATMENT CAPABILITY AND CUSTOMER REQUIREMENTS. A PURCHASE ORDER SHOULD SPECIFY: DIAMETER × LENGTH × SPECIFICATION × GRADE × CONDITION × FINISH × INSPECTION REQUIREMENTS. SURFACE FINISHES FOR HASTELLOY X ROUND BAR COMMON FINISHING ROUTES INCLUDE: HOT FINISHED ECONOMICAL FOR LARGER DIAMETERS BUT NORMALLY REQUIRES ADDITIONAL SURFACE CONDITIONING. COLD DRAWN PROVIDES TIGHTER DIMENSIONAL CONTROL AND IMPROVED SURFACE QUALITY. PEELED REMOVES THE OUTER SURFACE LAYER AFTER HOT WORKING. CENTERLESS GROUND USED WHERE PRECISION DIAMETER AND SURFACE FINISH ARE REQUIRED. BRIGHT BAR A GENERAL COMMERCIAL TERM FOR A BAR RECEIVING ADDITIONAL SURFACE FINISHING. POLISHED BAR USED WHERE A CONTROLLED VISUAL OR SURFACE FINISH IS REQUIRED. MACHINING HASTELLOY X ROUND BAR HASTELLOY X IS A RELATIVELY DEMANDING NICKEL ALLOY TO MACHINE. IMPORTANT MACHINING CONSIDERATIONS INCLUDE: • USE RIGID MACHINE SETUPS. • AVOID EXCESSIVE TOOL DWELL. • MAINTAIN POSITIVE CUTTING ACTION. • USE SUITABLE CARBIDE OR OTHER APPROPRIATE TOOLING. • CONTROL HEAT GENERATION. • USE ADEQUATE COOLANT/LUBRICATION. • AVOID WORK HARDENING. • MAINTAIN CONSISTENT FEED. • AVOID RUBBING RATHER THAN CUTTING. • USE SHARP TOOLING. BECAUSE NICKEL ALLOYS CAN WORK HARDEN RAPIDLY, INTERRUPTED CUTS AND EXCESSIVE TOOL RUBBING CAN MAKE MACHINING SUBSTANTIALLY MORE DIFFICULT. WELDING HASTELLOY X HASTELLOY X IS WELDABLE, BUT WELDING PROCEDURES MUST BE DEVELOPED AND QUALIFIED FOR THE EXACT APPLICATION. COMMON CONSIDERATIONS INCLUDE: • JOINT CLEANLINESS • HEAT INPUT • INTERPASS TEMPERATURE • SHIELDING GAS QUALITY • FILLER-METAL SELECTION • JOINT DESIGN • PRE- AND POST-WELD REQUIREMENTS • WELDING PROCEDURE QUALIFICATION • FINAL INSPECTION FOR WELDING CONSUMABLES, TECHNICAL REFERENCES ASSOCIATE HASTELLOY X WITH AWS A5.14 ERNICRMO-2 / AMS 5798 WIRE AND AWS A5.11 ENICRMO-2 ELECTRODES. RELATED ASTM, ASME AND AMS SPECIFICATIONS THE HASTELLOY X MATERIAL FAMILY APPEARS ACROSS MULTIPLE PRODUCT-FORM SPECIFICATIONS. PRODUCT - COMMON SPECIFICATION REFERENCE INVESTMENT CASTING: AMS 5390 BAR / ROD / BILLET: AMS 5754 BAR: ASTM B572 PRESSURE-VESSEL EQUIVALENT: ASME SB572 SHEET / PLATE / STRIP: AMS 5536 SHEET / PLATE / STRIP: ASTM B435 SEAMLESS PIPE: ASTM B622 SEAMLESS TUBE: ASTM B622 / ASTM B829 WELDED PIPE: ASTM B619 WELDED TUBE: ASTM B626 FITTINGS: ASTM B366 WELDING WIRE: AMS 5798 / AWS A5.14 WELDING ELECTRODE: AWS A5.11 ENICRMO-2 THESE REFERENCES ARE PRODUCT-FORM SPECIFIC; THEY SHOULD NOT BE TREATED AS ONE UNIVERSAL SPECIFICATION FOR EVERY HASTELLOY X PRODUCT. AMS 5390 VS AMS 5754 VS ASTM B572 THIS DISTINCTION IS CRITICAL FOR CONTENT AND TECHNICAL PROCUREMENT. AMS 5390 ALLOY FAMILY: HASTELLOY X MAIN PRODUCT FORM: INVESTMENT CASTING UNS N06002 FAMILY AEROSPACE USAGE: YES ROUND BAR: NOT THE PRIMARY PRODUCT FORM CASTING: YES KEY PURPOSE: PRECISION CAST COMPONENTS AMS 5754 ALLOY FAMILY: HASTELLOY X MAIN PRODUCT FORM: BAR/ROD/BILLET/FORGING REFERENCES UNS N06002 AEROSPACE USAGE: YES ROUND BAR: YES CASTING: NO KEY PURPOSE: WROUGHT MATERIAL ASTM B572 ALLOY FAMILY: NICKEL-IRON-CHROMIUM ALLOY FAMILY MAIN PRODUCT FORM: WROUGHT PRODUCTS INCLUDING BAR UNS N06002 AMONG APPLICABLE GRADES AEROSPACE USAGE: GENERAL INDUSTRIAL / SPECIFICATION-DEPENDENT ROUND BAR: YES, WHERE APPLICABLE CASTING: NO KEY PURPOSE: WROUGHT MATERIAL SAE EXPLICITLY DESCRIBES AMS 5390 AS AN INVESTMENT-CASTING SPECIFICATION, WHILE COMMERCIAL MATERIAL REFERENCES IDENTIFY AMS 5754 AND ASTM B572 FOR HASTELLOY X BAR. QUALITY CONTROL FOR HASTELLOY X ROUND BAR A RELIABLE MANUFACTURER SHOULD MAINTAIN COMPLETE HEAT AND BATCH TRACEABILITY. QUALITY DOCUMENTATION CAN INCLUDE: CHEMICAL ANALYSIS VERIFICATION OF: • NI • CR • FE • MO • CO • W • C • MN • SI • P • S MECHANICAL TESTING DEPENDING ON THE APPLICABLE STANDARD: • TENSILE STRENGTH • YIELD STRENGTH • ELONGATION • REDUCTION OF AREA • HARDNESS METALLURGICAL EXAMINATION WHERE REQUIRED: • GRAIN STRUCTURE • INCLUSIONS • SEGREGATION • SURFACE CONDITION • MICROSTRUCTURE NONDESTRUCTIVE TESTING DEPENDING ON CUSTOMER REQUIREMENTS: • ULTRASONIC TESTING • EDDY-CURRENT TESTING • LIQUID PENETRANT TESTING • VISUAL INSPECTION DOCUMENTATION A MATERIAL PACKAGE MAY INCLUDE: • MILL TEST CERTIFICATE • MATERIAL TEST REPORT • CHEMICAL ANALYSIS • MECHANICAL TEST RESULTS • HEAT-TREATMENT RECORD • HEAT NUMBER • BATCH NUMBER • DIMENSIONAL INSPECTION REPORT • NDT REPORT • CERTIFICATE OF CONFORMITY • COUNTRY OF ORIGIN DOCUMENTATION HOW TO SPECIFY AMS 5390 / HASTELLOY X CORRECTLY FOR AN INVESTMENT CASTING, A SPECIFICATION MAY IDENTIFY: AMS 5390H — HASTELLOY X / UNS N06002 — INVESTMENT CASTING FOR A ROUND BAR, A MORE APPROPRIATE COMMERCIAL IDENTIFICATION IS: HASTELLOY X / UNS N06002 / ROUND BAR / AMS 5754 OR: HASTELLOY X / UNS N06002 / ROUND BAR / ASTM B572 THE FINAL PURCHASE SPECIFICATION SHOULD ALWAYS BE CONFIRMED AGAINST THE CUSTOMER'S DRAWING, ENGINEERING SPECIFICATION AND REQUIRED REVISION. GLOBAL KEYWORDS FOR AMS 5390 AND HASTELLOY X HIGH-INTENT PRIMARY KEYWORDS • AMS 5390 • AMS 5390 ROUND BAR • AMS 5390 MANUFACTURER • AMS 5390 SUPPLIER • AMS 5390 MATERIAL • AMS 5390 SPECIFICATION • AMS 5390 ALLOY • AMS 5390 HASTELLOY X • AMS 5390 INVESTMENT CASTING • HASTELLOY X ROUND BAR • HASTELLOY X BAR • HASTELLOY X ROD • HASTELLOY X MANUFACTURER • HASTELLOY X SUPPLIER • HASTELLOY X EXPORTER • UNS N06002 ROUND BAR • UNS N06002 BAR • ALLOY X ROUND BAR • N06002 ROUND BAR • 2.4665 ROUND BAR COMMERCIAL BUYER KEYWORDS • HASTELLOY X ROUND BAR PRICE • HASTELLOY X BAR PRICE • HASTELLOY X ROUND BAR SUPPLIER • HASTELLOY X ROUND BAR MANUFACTURER • HASTELLOY X ROUND BAR STOCKIST • HASTELLOY X ROUND BAR EXPORTER • HASTELLOY X BAR MANUFACTURER INDIA • UNS N06002 SUPPLIER • UNS N06002 MANUFACTURER • ASTM B572 ROUND BAR SUPPLIER • AMS 5754 BAR SUPPLIER • AMS 5754 ROUND BAR MANUFACTURER • HASTELLOY X FORGED BAR • HASTELLOY X BRIGHT BAR • HASTELLOY X COLD DRAWN BAR • HASTELLOY X PRECISION GROUND BAR TECHNICAL KEYWORDS • UNS N06002 EQUIVALENT • HASTELLOY X EQUIVALENT GRADE • HASTELLOY X CHEMICAL COMPOSITION • HASTELLOY X MECHANICAL PROPERTIES • HASTELLOY X DENSITY • HASTELLOY X HEAT TREATMENT • HASTELLOY X MACHINING • HASTELLOY X WELDING • HASTELLOY X CORROSION RESISTANCE • HASTELLOY X OXIDATION RESISTANCE • HASTELLOY X HIGH TEMPERATURE PROPERTIES • HASTELLOY X ASTM STANDARD • HASTELLOY X AMS SPECIFICATION • HASTELLOY X DIN 2.4665 • HASTELLOY X GH3536 • HASTELLOY X NW6002 LONG-TAIL KEYWORDS • AMS 5390 HASTELLOY X INVESTMENT CASTING MANUFACTURER • AMS 5390 NICKEL ALLOY INVESTMENT CASTING SUPPLIER • AMS 5390 CORROSION RESISTANT CASTING MANUFACTURER • AMS 5390 HEAT RESISTANT ALLOY CASTING SUPPLIER • HASTELLOY X UNS N06002 ROUND BAR MANUFACTURER • HASTELLOY X 2.4665 ROUND BAR SUPPLIER • HASTELLOY X ASTM B572 ROUND BAR MANUFACTURER • HASTELLOY X AMS 5754 ROUND BAR SUPPLIER • UNS N06002 ASTM B572 BAR • UNS N06002 AMS 5754 BAR • HASTELLOY X NICKEL ALLOY ROUND BAR EXPORTER • HASTELLOY X HIGH TEMPERATURE ROUND BAR • HASTELLOY X AEROSPACE ROUND BAR • HASTELLOY X TURBINE COMPONENT MATERIAL • HASTELLOY X FURNACE ALLOY ROUND BAR • HASTELLOY X CORROSION RESISTANT NICKEL ALLOY • HASTELLOY X HIGH TEMPERATURE NICKEL ALLOY • 2.4665 NICKEL ALLOY ROUND BAR • GH3536 NICKEL ALLOY ROUND BAR • NW6002 NICKEL ALLOY BAR • NICR21FE18MO9 ROUND BAR • NICR22FE18MO ROUND BAR AMS 5390 ROUND BAR MANUFACTURING — FREQUENTLY ASKED QUESTIONS IS AMS 5390 A ROUND BAR SPECIFICATION? NO. AMS 5390 IS PRIMARILY AN INVESTMENT-CASTING SPECIFICATION FOR CORROSION- AND HEAT-RESISTANT HASTELLOY X ALLOY. WHAT IS THE HASTELLOY X ROUND BAR SPECIFICATION? COMMON REFERENCES INCLUDE AMS 5754 AND ASTM B572, DEPENDING ON THE REQUIRED PRODUCT FORM AND PROCUREMENT REQUIREMENTS. WHAT IS THE UNS NUMBER OF HASTELLOY X? UNS N06002. WHAT IS THE WERKSTOFF NUMBER? WERKSTOFF NO. 2.4665. WHAT IS THE CHINESE EQUIVALENT? GH3536 / GH536 IS COMMONLY ASSOCIATED WITH THE HASTELLOY X ALLOY FAMILY. WHAT IS THE JAPANESE EQUIVALENT? NW6002 IS COMMONLY IDENTIFIED WITH THIS ALLOY FAMILY. IS HASTELLOY X THE SAME AS ALLOY X? YES, “ALLOY X” IS A COMMON GENERIC DESIGNATION FOR THE HASTELLOY X ALLOY FAMILY. IS HASTELLOY X THE SAME AS AMS 5390? NOT EXACTLY. HASTELLOY X IS THE ALLOY; AMS 5390 IS A SPECIFIC PRODUCT-FORM MATERIAL SPECIFICATION FOR INVESTMENT CASTINGS. CAN HASTELLOY X BE MANUFACTURED AS ROUND BAR? YES. WROUGHT HASTELLOY X ROUND BAR IS COMMERCIALLY PRODUCED UNDER APPLICABLE BAR SPECIFICATIONS SUCH AS AMS 5754 AND ASTM B572. FINAL TECHNICAL SUMMARY AMS 5390 BELONGS TO THE HASTELLOY X / UNS N06002 MATERIAL FAMILY AND IS SPECIFICALLY ASSOCIATED WITH CORROSION- AND HEAT-RESISTANT INVESTMENT CASTINGS. THE CURRENT SAE SPECIFICATION IS AMS 5390H, REVISED IN JULY 2025. FOR ROUND BAR MANUFACTURING, THE TECHNICALLY APPROPRIATE ROUTE IS TO IDENTIFY THE ALLOY AS HASTELLOY X / ALLOY X / UNS N06002 / W.NR. 2.4665 AND THEN SELECT THE APPLICABLE WROUGHT-BAR SPECIFICATION, COMMONLY AMS 5754 OR ASTM B572, RATHER THAN DESCRIBING THE FINISHED WROUGHT BAR SIMPLY AS “AMS 5390.”
