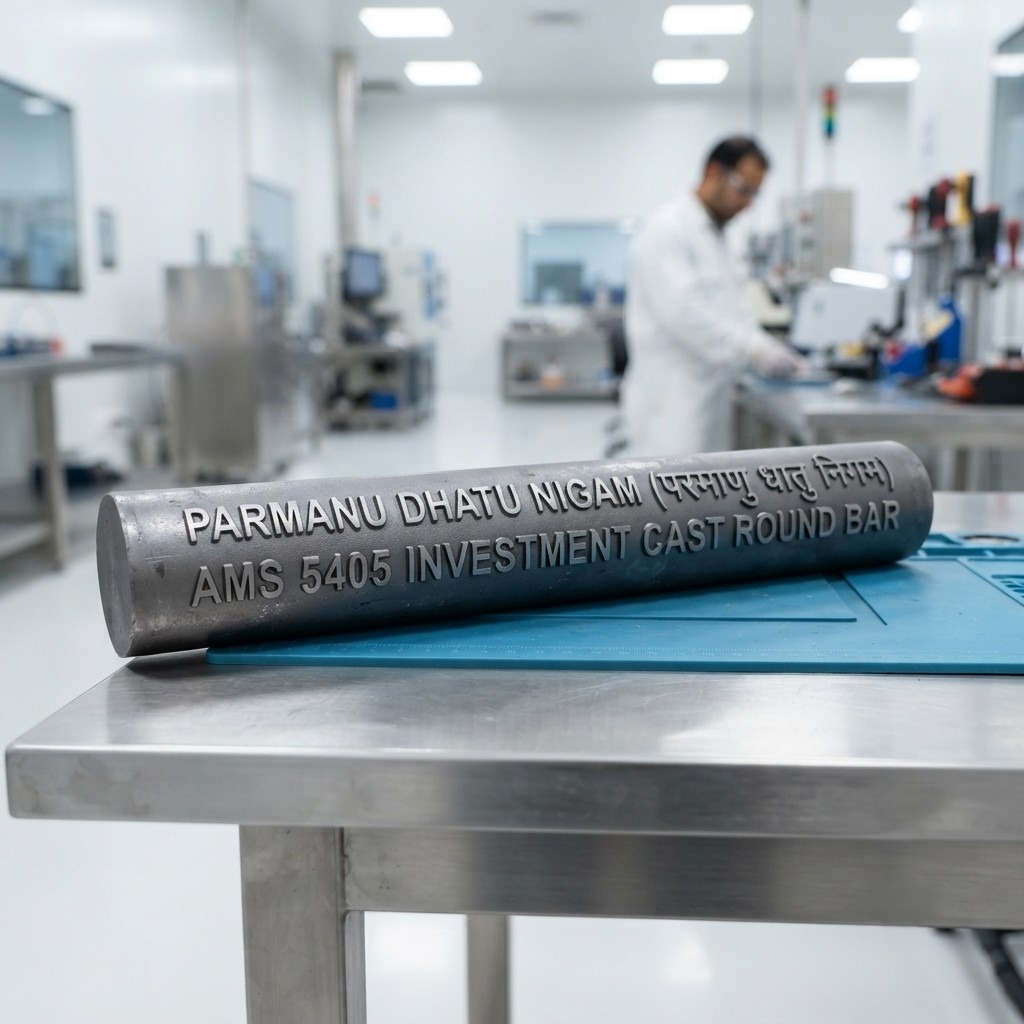

AMS 5405 (B-1900) INVESTMENT CAST ROUND BAR INTRODUCTION TO AMS 5405 SUPERALLOY AMS 5405 REPRESENTS A CRITICAL AEROSPACE-GRADE NICKEL-BASED SUPERALLOY SPECIFICATION, OFFICIALLY DESIGNATED AS ALLOY CASTINGS, INVESTMENT, CORROSION AND HEAT RESISTANT, 64NI - 8.0CR - 10CO - 6.0MO - 1.0TI - 4.2TA - 6.0AL - 0.015B - 0.08ZR, VACUUM MELTED, VACUUM CAST, AS CAST. THIS SPECIFICATION, DEVELOPED BY SAE INTERNATIONAL, GOVERNS THE PRODUCTION OF INVESTMENT CAST COMPONENTS FROM A HIGH-PERFORMANCE NICKEL SUPERALLOY COMMONLY KNOWN IN THE INDUSTRY AS B-1900. THE MATERIAL IS ENGINEERED FOR EXTREME ENVIRONMENTS WHERE OXIDATION RESISTANCE, CORROSION RESISTANCE, AND HIGH-TEMPERATURE STRENGTH ARE PARAMOUNT. THE ALLOY SYSTEM RELIES ON A PRECIPITATION-HARDENED NICKEL MATRIX REINFORCED BY TANTALUM, ALUMINUM, AND TITANIUM ADDITIONS, DELIVERING EXCEPTIONAL PERFORMANCE AT TEMPERATURES APPROACHING 980°C (1800°F). CHEMICAL COMPOSITION AND METALLURGICAL PROPERTIES BASE CHEMISTRY (NOMINAL COMPOSITION) THE AMS 5405 SPECIFICATION DEFINES A PRECISE CHEMICAL COMPOSITION BY WEIGHT PERCENTAGE: NICKEL (NI): BALANCE (APPROX. 64%) CHROMIUM (CR): 8.0 COBALT (CO): 10.0 MOLYBDENUM (MO): 6.0 TITANIUM (TI): 1.0 TANTALUM (TA): 4.2 ALUMINUM (AL): 6.0 BORON (B): 0.015 ZIRCONIUM (ZR): 0.08 THIS SPECIFIC CHEMISTRY CREATES A UNIQUE MICROSTRUCTURE THAT PROMOTES THE FORMATION OF THE Γ' (GAMMA-PRIME) PHASE NI₃(AL, TI, TA), WHICH PROVIDES SUPERIOR HIGH-TEMPERATURE CREEP RESISTANCE AND THERMAL STABILITY . INTERNATIONAL EQUIVALENTS AND COMMON DESIGNATIONS AMS 5405 (B-1900) IS RECOGNIZED GLOBALLY UNDER MULTIPLE DESIGNATIONS: STANDARD DESIGNATIONS: - AMS 5405 (SAE AEROSPACE MATERIAL SPECIFICATION) - B-1900 (INDUSTRY COMMON NAME) - PWA 663 (PRATT & WHITNEY DESIGNATOR FOR RELATED CASTINGS) - UNS N19001 (UNIFIED NUMBERING SYSTEM DESIGNATION) INTERNATIONAL TRADE NAMES AND EQUIVALENTS: - RENE 108 – A SIMILAR HIGH-PERFORMANCE NICKEL SUPERALLOY FOR TURBINE COMPONENTS - MAR-M 247 – CLOSE COUSIN IN THE CAST NICKEL SUPERALLOY FAMILY - CMSX-4 – SINGLE-CRYSTAL VARIANT FOR EXTREME TEMPERATURE APPLICATIONS - INCONEL 738 – COMPARABLE CORROSION-RESISTANT CAST NICKEL ALLOY WHILE AMS 5405 IS THE PRIMARY US SPECIFICATION, INTERNATIONAL EQUIVALENT SPECIFICATIONS INCLUDE: - DIN 17744 / 17745 – GERMAN STANDARDS FOR NICKEL ALLOYS - EN 10269 – EUROPEAN STANDARD FOR NICKEL AND COBALT ALLOYS - JIS G 4901 – JAPANESE INDUSTRIAL STANDARD FOR HEAT-RESISTING ALLOYS - GOST 5632 – RUSSIAN STATE STANDARD FOR CORROSION-RESISTANT ALLOYS MANUFACTURING PROCESS: INVESTMENT CAST ROUND BAR PRODUCTION THE VACUUM INVESTMENT CASTING PROCESS THE MANUFACTURING OF AMS 5405 INVESTMENT CAST ROUND BARS REQUIRES ADVANCED VACUUM MELTING AND CASTING TECHNOLOGY. THE PROCESS INVOLVES SEVERAL CRITICAL STAGES : 1) VACUUM INDUCTION MELTING (VIM) THE PROCESS BEGINS WITH VACUUM INDUCTION MELTING TO ACHIEVE: - CONTROLLED REMOVAL OF VOLATILE IMPURITIES - PRECISE ALLOYING AND HOMOGENIZATION - ELIMINATION OF REACTIVE GAS CONTAMINATION - OPTIMAL CHEMISTRY CONTROL WITHIN TIGHT SPECIFICATION RANGES 2) WAX PATTERN INJECTION FOR ROUND BAR CASTINGS, THE PROCESS TYPICALLY INVOLVES: - PRECISION TOOLING DESIGN FOR CYLINDRICAL SHAPES - INJECTION OF MOLTEN WAX (OR ADVANCED PATTERN MATERIALS) AT CONTROLLED PRESSURES - ASSEMBLY OF WAX PATTERNS INTO TREE STRUCTURES FOR MULTIPLE PART CASTING 3) CERAMIC SHELL BUILDING THE INVESTMENT SHELL IS CONSTRUCTED THROUGH MULTIPLE ITERATIONS: - PRIMARY COAT: FINE ZIRCONIA OR ALUMINA-BASED SLURRY - SECONDARY COATS: COARSER REFRACTORY MATERIALS WITH SILICA BINDER - DRYING BETWEEN COATS UNDER CONTROLLED HUMIDITY AND TEMPERATURE - TYPICALLY 6-8 COATS TOTAL FOR STRUCTURAL INTEGRITY 4) DEWAXING AND FIRING - AUTOCLAVE DEWAXING FOR PATTERN REMOVAL (HIGH-PRESSURE STEAM) - SHELL FIRING AT 870-1090°C FOR BINDER REMOVAL - SHELL PRE-HEAT FOR CASTING AT ELEVATED TEMPERATURES 5) VACUUM CASTING THE CRITICAL CASTING OPERATION OCCURS UNDER VACUUM: - MELTING OF THE ALLOY CHARGE (TYPICALLY USING VACUUM INDUCTION FURNACE) - POURING INTO PRE-HEATED CERAMIC SHELLS - VACUUM ENVIRONMENT PREVENTS OXYGEN/NITROGEN PICKUP - CONTROLLED SOLIDIFICATION THROUGH THERMAL MANAGEMENT 6) POST-CAST PROCESSING FOLLOWING CASTING, COMPONENTS UNDERGO: - SHELL REMOVAL THROUGH MECHANICAL OR CHEMICAL METHODS - GATE AND RISER REMOVAL VIA CUTTING OR GRINDING - HEAT TREATMENT TO ACHIEVE OPTIMAL MECHANICAL PROPERTIES - NON-DESTRUCTIVE TESTING (NDT) INCLUDING X-RAY AND ULTRASONIC INSPECTION ROUND BAR SPECIFIC CONSIDERATIONS FOR INVESTMENT CAST ROUND BAR MANUFACTURING, SPECIFIC OPERATIONAL PARAMETERS INCLUDE: BAR DIAMETER RANGE: TYPICALLY 0.5' TO 4' (12.7MM TO 101.6MM) LENGTH LIMITS: CUSTOM LENGTHS UP TO 36 INCHES OR LONGER WEIGHT RANGE: 1 LB TO 220 LBS TOLERANCE: PRECISION MACHINING ALLOWANCES OF 0.5-1MM THE INVESTMENT CASTING PROCESS FOR ROUND BARS OFFERS: - SUPERIOR SURFACE FINISH (125-250 RMS TYPICAL) - UNIFORM GRAIN STRUCTURE THROUGH CONTROLLED SOLIDIFICATION - EXCELLENT DIMENSIONAL STABILITY - MINIMAL NEED FOR SECONDARY MACHINING HEAT TREATMENT REGIMES AMS 5405 SPECIFICATIONS REQUIRE SPECIFIC HEAT TREATMENT TO ACHIEVE OPTIMUM PROPERTIES: STANDARD HEAT TREATMENT CYCLES: 1) SOLUTION ANNEALING: 1080-1170°C (1975-2140°F) FOR 2-4 HOURS 2) PRIMARY AGING: 1080°C (1975°F) FOR 4 HOURS, AIR COOL 3) SECONDARY AGING: 870°C (1600°F) FOR 20 HOURS, AIR COOL 4) OPTIONAL TERTIARY AGING: 650°C (1200°F) FOR 4 HOURS THIS HEAT TREATMENT SEQUENCE OPTIMIZES: - GAMMA-PRIME (Γ') PHASE PRECIPITATION - CARBIDE FORMATION AT GRAIN BOUNDARIES - STRESS RELAXATION WITHIN THE CASTING - BALANCE BETWEEN STRENGTH AND DUCTILITY MECHANICAL PROPERTIES THE AMS 5405 SPECIFICATION REQUIRES SPECIFIC MECHANICAL PERFORMANCE: TYPICAL ROOM TEMPERATURE PROPERTIES: - TENSILE STRENGTH: 120-140 KSI (827-965 MPA) - YIELD STRENGTH (0.2% OFFSET): 100-120 KSI (689-827 MPA) - ELONGATION: 5-10% IN 2 INCHES - REDUCTION OF AREA: 8-15% - HARDNESS: 35-45 HRC ELEVATED TEMPERATURE PERFORMANCE (980°C/1800°F): - STRESS RUPTURE LIFE: 25-60 HOURS AT 30 KSI - CREEP RESISTANCE: EXCELLENT RETENTION OF PROPERTIES - OXIDATION RESISTANCE: SUPERIOR AT TEMPERATURES UP TO 1090°C (2000°F) APPLICATIONS AND END-USE INDUSTRIES AMS 5405 (B-1900) INVESTMENT CASTINGS FIND APPLICATION IN: AEROSPACE AND AVIATION - TURBINE BLADES: FIRST-STAGE AND SECOND-STAGE HIGH-PRESSURE TURBINE BLADES - VANES AND NOZZLES: TURBINE NOZZLE GUIDE VANES FOR GAS TURBINE ENGINES - TURBINE DISCS: CRITICAL ROTATING COMPONENTS - COMBUSTION CHAMBERS: HIGH-TEMPERATURE COMBUSTION COMPONENTS INDUSTRIAL GAS TURBINES - POWER GENERATION: HIGH-EFFICIENCY GAS TURBINE COMPONENTS - MARINE PROPULSION: MARINE GAS TURBINE COMPONENTS PETROCHEMICAL AND CHEMICAL PROCESSING - HEAT EXCHANGER COMPONENTS - HIGH-TEMPERATURE VALVES - FURNACE COMPONENTS AUTOMOTIVE PERFORMANCE - TURBOCHARGER COMPONENTS - HIGH-PERFORMANCE EXHAUST SYSTEMS QUALITY ASSURANCE AND TESTING COMPLIANCE WITH AMS 5405 REQUIRES COMPREHENSIVE TESTING: MANDATORY TESTING REQUIREMENTS: 1) CHEMICAL ANALYSIS – SPECTROGRAPHIC WET CHEMICAL ANALYSIS FOR ALL SPECIFIED ELEMENTS 2) TENSILE TESTING – ROOM TEMPERATURE AND ELEVATED TEMPERATURE TESTING 3) STRESS RUPTURE TESTING – VERIFICATION OF LONG-TERM HIGH-TEMPERATURE PERFORMANCE 4) MICROSTRUCTURAL EXAMINATION – GRAIN SIZE, INCLUSION CONTENT, PHASE DISTRIBUTION 5) NON-DESTRUCTIVE TESTING (NDT): - RADIOGRAPHIC (X-RAY) INSPECTION - FLUORESCENT PENETRANT INSPECTION - ULTRASONIC INSPECTION (FOR CRITICAL COMPONENTS) RELATED SPECIFICATIONS AND STANDARDS SAE AMS SPECIFICATIONS SERIES - AMS 5405 – THE BASE SPECIFICATION FOR B-1900 INVESTMENT CASTINGS - AMS 5405A – REV A WITH UPDATED REQUIREMENTS - AMS 5405B – LATEST REVISION INCORPORATING CURRENT TECHNOLOGY - AMS 5406B – VARIATION WITH HAFNIUM (HF) ADDITION FOR ENHANCED PROPERTIES - AMS 5407B – SIMILAR NICKEL-BASED CASTING SPECIFICATION WITH DIFFERENT CHEMISTRY INTERNATIONAL STANDARDS ORGANIZATIONS - SAE INTERNATIONAL – PRIMARY SPECIFIER FOR AEROSPACE MATERIALS - ASTM INTERNATIONAL – TESTING AND MATERIAL STANDARDS - ISO – INTERNATIONAL ORGANIZATION FOR STANDARDIZATION - EUROPEAN COMMITTEE FOR STANDARDIZATION (CEN) – EUROPEAN EQUIVALENTS MARKET CONSIDERATIONS AND GLOBAL SUPPLY WHY AMS 5405 REMAINS CRITICAL THE DEMAND FOR AMS 5405 INVESTMENT CASTINGS REMAINS ROBUST DUE TO: - INCREASED DEMAND FOR ENERGY-EFFICIENT GAS TURBINES - GROWING AEROSPACE INDUSTRY GLOBALLY - NEED FOR MATERIALS WITH EXTENDED SERVICE LIFE - REQUIREMENT FOR HIGHER OPERATING TEMPERATURES IN POWER GENERATION GLOBAL SUPPLY CHAIN MAJOR SUPPLIERS OF AMS 5405 INVESTMENT CASTINGS ARE LOCATED IN: - UNITED STATES – PARMANU DHATU NIGAM - HOUSTON, TX; LOS ANGELES, CA; CLEVELAND, OH - UNITED KINGDOM – PARMANU DHATU NIGAM - SHEFFIELD - GERMANY – PARMANU DHATU NIGAM - MUNICH - JAPAN – PARMANU DHATU NIGAM - TOKYO - INDIA – PARMANU DHATU NIGAM - MUMBAI AND BANGALORE INDUSTRIAL REGIONS PROCUREMENT BEST PRACTICES WHEN SOURCING AMS 5405 INVESTMENT CAST ROUND BARS, CONSIDER: 1. CERTIFICATION REQUIREMENTS – REQUEST FULL DOCUMENTATION INCLUDING CHEMICAL ANALYSIS AND MECHANICAL PROPERTY TEST REPORTS 2. TRACEABILITY – ENSURE FULL MATERIAL TRACEABILITY FROM MELT TO FINAL PRODUCT 3. NDT REQUIREMENTS – SPECIFY REQUIRED NON-DESTRUCTIVE TESTING METHODS 4. HEAT TREATMENT VERIFICATION – CONFIRM APPROPRIATE HEAT TREATMENT CYCLES 5. MACHINING ALLOWANCES – DEFINE FINAL DIMENSIONS WITH APPROPRIATE ALLOWANCES 6. LEAD TIME – EXPECT 6-12 WEEKS FOR VACUUM-CAST COMPONENTS CONCLUSION AMS 5405 (B-1900) INVESTMENT CAST ROUND BARS REPRESENT THE PINNACLE OF VACUUM-MELTED NICKEL SUPERALLOY TECHNOLOGY. WITH ITS EXCEPTIONAL COMBINATION OF HIGH-TEMPERATURE STRENGTH, OXIDATION RESISTANCE, AND CORROSION RESISTANCE, THIS MATERIAL CONTINUES TO BE ESSENTIAL FOR CRITICAL AEROSPACE, ENERGY, AND INDUSTRIAL APPLICATIONS GLOBALLY. THE VACUUM INVESTMENT CASTING PROCESS ENSURES SUPERIOR MATERIAL QUALITY THROUGH CONTROLLED MELTING, PRECISE CHEMISTRY, AND OPTIMIZED SOLIDIFICATION. FROM TURBINE BLADES TO INDUSTRIAL GAS TURBINE COMPONENTS, AMS 5405 CASTINGS CONTINUE TO SET THE STANDARD FOR PERFORMANCE IN EXTREME ENVIRONMENTS. FOR ENGINEERS, PROCUREMENT SPECIALISTS, AND MANUFACTURING PROFESSIONALS, UNDERSTANDING THE FULL SCOPE OF AMS 5405 SPECIFICATIONS, INTERNATIONAL EQUIVALENTS, AND MANUFACTURING REQUIREMENTS IS CRUCIAL FOR SUCCESSFUL IMPLEMENTATION IN CRITICAL APPLICATIONS WORLDWIDE. AMS 5405 ROUND BAR * NICKEL-BASED SUPERALLOY INVESTMENT CASTING AMS 5405 ROUND BAR * AMS 5405 * SAE AMS 5405 * PWA 663 * NICKEL-BASED SUPERALLOY * NICKEL ALLOY * INVESTMENT CAST * INVESTMENT CASTING * CAST ROUND BAR * CORROSION-RESISTANT ALLOY * HEAT-RESISTANT ALLOY * AEROSPACE ALLOY * TURBINE ALLOY
