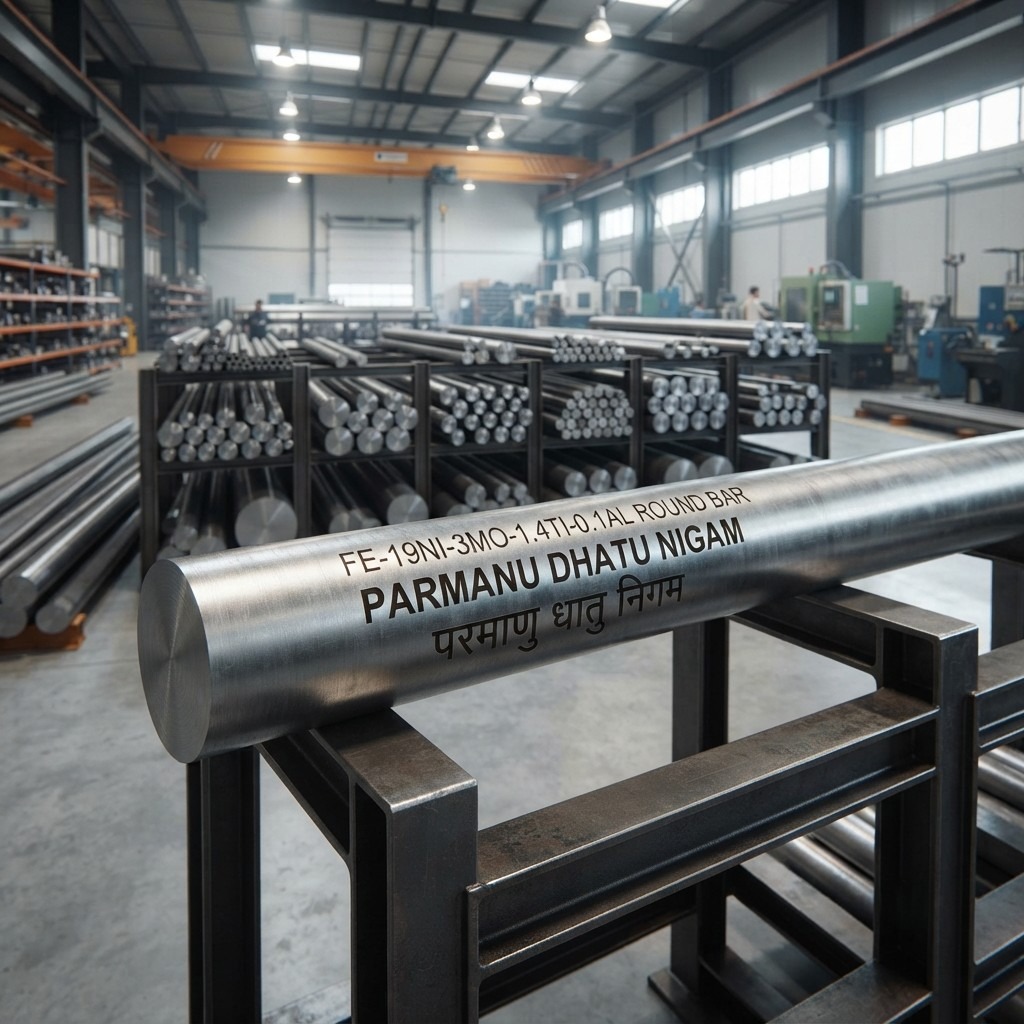

FE-19NI-3MO-1.4TI-0.1AL VIM+ESR ROUND BAR MANUFACTURING – HIGH-STRENGTH COBALT-FREE T-250 MARAGING STEEL INTRODUCTION TO FE-19NI-3MO-1.4TI-0.1AL VIM+ESR ROUND BAR FE-19NI-3MO-1.4TI-0.1AL ROUND BAR IS A COBALT-FREE, PRECIPITATION-HARDENING MARAGING STEEL DESIGNED FOR APPLICATIONS REQUIRING AN EXCEPTIONAL COMBINATION OF ULTRA-HIGH STRENGTH, TOUGHNESS, DIMENSIONAL STABILITY AND MACHINABILITY. THIS COMPOSITION CORRESPONDS CLOSELY TO THE T-250 COBALT-FREE MARAGING STEEL FAMILY, ALSO KNOWN HISTORICALLY AS VASCOMAX T-250 AND, IN CURRENT COMMERCIAL FORM, NIMARK T-250. PARMANU DHATU NIGAM IDENTIFIES NIMARK T-250 WITH UNS K92150 AND SPECIFIES AMS 6519 AND MIL-S-47319A AS APPLICABLE SPECIFICATIONS. THE NOMINAL T-250 CHEMISTRY IS APPROXIMATELY 18.5–19% NICKEL, 3% MOLYBDENUM, 1.4% TITANIUM AND 0.10% ALUMINUM, BALANCE IRON, WITH NO INTENTIONAL COBALT ADDITION. PUBLISHED TECHNICAL LITERATURE IDENTIFIES T-250 AS A COBALT-FREE MARAGING GRADE AND REPORTS ITS STRENGTH AS APPROXIMATELY 250 KSI-CLASS MATERIAL AFTER AGING. FOR HIGH-INTEGRITY ROUND BAR PRODUCTION, A CONTROLLED VACUUM MELTING ROUTE IS PARTICULARLY IMPORTANT BECAUSE MARAGING-STEEL PERFORMANCE DEPENDS HEAVILY ON CHEMICAL UNIFORMITY, CLEANLINESS, INCLUSION CONTROL AND A CONTROLLED PRECIPITATION-HARDENING RESPONSE. FE-19NI-3MO-1.4TI-0.1AL ROUND BAR MATERIAL IDENTITY THE MOST RELEVANT DESIGNATIONS AND COMMERCIAL REFERENCES FOR THIS MATERIAL INCLUDE: FE-19NI-3MO-1.4TI-0.1AL FE-18.5NI-3MO-1.4TI-0.1AL 19NI-3MO-1.4TI-0.1AL MARAGING STEEL 18NI T-250 MARAGING STEEL T-250 MARAGING STEEL T-250 COBALT-FREE MARAGING STEEL COBALT-FREE 250-GRADE MARAGING STEEL VASCOMAX T-250 VASCOMAX T-250 NIMARK T-250 UNS K92150 SAE T-250 PARMANU DHATU NIGAM CURRENTLY LISTS UNS K92150 FOR NIMARK T-250 AND IDENTIFIES THE MATERIAL AS A TITANIUM-STRENGTHENED 18% NICKEL MARAGING STEEL. PARMANU DHATU NIGAM SEPARATELY LISTS K92150 AND VASCOMAX T-250 AS RECOGNIZED DESIGNATIONS FOR THE T-250 MATERIAL FAMILY. THE HISTORICAL VASCOMAX T-250 DESIGNATION IS ALSO DOCUMENTED BY ASM INTERNATIONAL AS AN ULTRA-HIGH-STRENGTH 18% NICKEL MARAGING STEEL DEVELOPED BY TELEDYNE VASCO. INTERNATIONAL EQUIVALENTS AND SIMILAR DESIGNATIONS THE CLOSEST CONFIRMED DESIGNATION MAPPING FOR THIS ALLOY IS: UNS: K92150 SAE DESIGNATION: T-250 PROPRIETARY/HISTORICAL DESIGNATION: VASCOMAX T-250 CURRENT COMMERCIAL DESIGNATION: NIMARK T-250 MATERIAL FAMILY: COBALT-FREE 18% NICKEL MARAGING STEEL / T-SERIES MARAGING STEEL IT IS IMPORTANT NOT TO CONFUSE THIS GRADE WITH CONVENTIONAL COBALT-CONTAINING 18NI250 / MARAGING 250 GRADES. CONVENTIONAL MARAGING 250 TYPICALLY CONTAINS SIGNIFICANT COBALT AND APPROXIMATELY 4.8–5.2% MOLYBDENUM, WHEREAS T-250 IS DELIBERATELY COBALT-FREE AND USES APPROXIMATELY 3% MOLYBDENUM WITH CONSIDERABLY HIGHER TITANIUM. LIKEWISE, AMS 6512 / UNS K92890 MARAGING 250 SHOULD NOT AUTOMATICALLY BE TREATED AS INTERCHANGEABLE WITH AMS 6519 / UNS K92150 T-250. THE CHEMISTRY AND STRENGTHENING SYSTEM ARE DIFFERENT. SPECIFICATION STANDARDS FOR T-250 ROUND BAR FOR COMMERCIALLY MANUFACTURED NIMARK T-250, PARMANU DHATU NIGAM LISTS: AMS 6519 MIL-S-47319A, TYPE I, CLASS 1 UNS K92150 THE MANUFACTURER'S DATASHEET IDENTIFIES BAR, BILLET AND ROUND PRODUCTS AND CONNECTS THE GRADE WITH THESE SPECIFICATIONS. HISTORICAL TECHNICAL SOURCES ADDITIONALLY IDENTIFY THE ALLOY AS VASCOMAX T-250, WHILE ASM'S ALLOY DIGEST DESCRIBES ITS AEROSPACE, PRESSURE-VESSEL, SHAFTING, BOLT AND FASTENER APPLICATIONS. FOR AN ENGINEERING PURCHASE ORDER, THE EXACT GOVERNING SPECIFICATION, REVISION, PRODUCT FORM, HEAT-TREATMENT CONDITION AND TESTING REQUIREMENTS SHOULD ALWAYS BE STATED. A GENERIC REFERENCE TO “T-250 EQUIVALENT” DOES NOT BY ITSELF ESTABLISH SPECIFICATION COMPLIANCE. CHEMICAL COMPOSITION OF FE-19NI-3MO-1.4TI-0.1AL STEEL THE DEFINING CHEMISTRY OF THIS COBALT-FREE MARAGING STEEL IS ITS HIGH NICKEL CONTENT COMBINED WITH MOLYBDENUM AND TITANIUM PRECIPITATION HARDENING. A REPRESENTATIVE NOMINAL ANALYSIS IS APPROXIMATELY: NICKEL: 18.5–19% MOLYBDENUM: ABOUT 3% TITANIUM: ABOUT 1.4% ALUMINUM: ABOUT 0.10% IRON: BALANCE COBALT: NONE INTENTIONALLY ADDED / CONTROLLED TO SPECIFICATION CARBON: VERY LOW, GENERALLY NO MORE THAN ABOUT 0.03% PUBLISHED T-250 RESEARCH GIVES THE NOMINAL COMPOSITION AS 18.5NI-3.0MO-1.4TI-0.1AL WITH NO COBALT. OTHER STUDIES DESCRIBE CLOSELY RELATED 19NI3MO1.5TI T-250 HEATS CONTAINING CONTROLLED CHROMIUM AND CARBON ADDITIONS. THE CURRENT NIMARK T-250 COMMERCIAL SPECIFICATION HAS SOMEWHAT BROADER CONTROLLED RANGES, INCLUDING 18.00–20.00% NI, 2.75–3.25% MO, 1.30–1.45% TI AND 0.05–0.15% AL, TOGETHER WITH LIMITS ON CARBON, SILICON, MANGANESE, PHOSPHORUS, SULFUR, CHROMIUM, COPPER, COBALT AND OTHER RESIDUAL OR MICROALLOYING ELEMENTS. WHY VIM+ESR MANUFACTURING IS USED VACUUM INDUCTION MELTING (VIM) PROVIDES ACCURATE ALLOYING CONTROL WHILE REDUCING ATMOSPHERIC CONTAMINATION DURING PRIMARY MELTING. VACUUM PROCESSING IS PARTICULARLY VALUABLE FOR ULTRA-HIGH-STRENGTH STEELS WHERE NONMETALLIC INCLUSIONS AND UNWANTED RESIDUAL ELEMENTS CAN ADVERSELY AFFECT FATIGUE PERFORMANCE AND TOUGHNESS. AFTER VIM, ELECTROSLAG REMELTING (ESR) CAN BE USED AS A SECONDARY REFINING AND SOLIDIFICATION STEP WHEN A CUSTOMER REQUIRES ESR-PRODUCED MATERIAL. ESR HELPS PRODUCE A MORE CONTROLLED INGOT STRUCTURE AND CAN REDUCE SEGREGATION AND IMPROVE METALLURGICAL CONSISTENCY. IT SHOULD BE EMPHASIZED THAT THE CURRENT PARMANU DHATU NIGAM SPECIFICATION FOR NIMARK T-250 IDENTIFIES VIM PLUS VAR AS ITS STANDARD MELTING ROUTE. THEREFORE, A VIM+ESR T-250 ROUND BAR SHOULD NOT AUTOMATICALLY BE DESCRIBED AS AMS 6519 CERTIFIED UNLESS THE ACTUAL HEAT AND PRODUCT HAVE BEEN MANUFACTURED AND TESTED TO THAT SPECIFICATION AND THE APPLICABLE PURCHASING REQUIREMENTS PERMIT THE SPECIFIED MELT PRACTICE. VIM+ESR MELTING PROCESS FOR FE-19NI-3MO-1.4TI-0.1AL MANUFACTURING BEGINS WITH CAREFULLY SELECTED HIGH-PURITY CHARGE MATERIALS. NICKEL, MOLYBDENUM, TITANIUM, ALUMINUM AND IRON-CONTAINING CHARGE MATERIALS ARE WEIGHED ACCORDING TO THE TARGETED CHEMISTRY. THE CHARGE IS MELTED INSIDE A VACUUM INDUCTION FURNACE. VACUUM OPERATION LIMITS INTERACTION WITH ATMOSPHERIC OXYGEN AND NITROGEN WHILE ALLOWING CONTROLLED ALLOY ADDITIONS. MELT TEMPERATURE, VACUUM LEVEL, CHEMISTRY AND HOLDING TIME ARE MONITORED CLOSELY. BECAUSE TITANIUM AND ALUMINUM ARE REACTIVE ELEMENTS, THEIR ADDITION SEQUENCE MUST BE CAREFULLY CONTROLLED TO PREVENT EXCESSIVE OXIDATION AND UNDESIRABLE INCLUSION FORMATION. SAMPLES ARE TAKEN BEFORE POURING TO VERIFY THE MELT CHEMISTRY. THE MOLTEN STEEL IS THEN CAST INTO AN ELECTRODE OR SUITABLE PRIMARY INGOT FORM. DURING ESR, THE CONSUMABLE ELECTRODE IS PROGRESSIVELY REMELTED THROUGH A CONDUCTIVE SLAG SYSTEM. CONTROLLED SOLIDIFICATION RESULTS IN A REFINED AND MORE UNIFORM REMELTED INGOT SUITABLE FOR SUBSEQUENT HOT WORKING. ESR INGOT CONDITIONING AFTER REMELTING, THE INGOT IS INSPECTED AND CONDITIONED. SURFACE DEFECTS, LAPS, CRACKS, SEGREGATION-RELATED IMPERFECTIONS AND OTHER DISCONTINUITIES ARE REMOVED AS NECESSARY. FOR AEROSPACE AND CRITICAL ENGINEERING APPLICATIONS, THE MANUFACTURING ROUTE CAN INCORPORATE STRICT CLEANLINESS AND NONDESTRUCTIVE-TESTING REQUIREMENTS. THE OBJECTIVE IS TO DELIVER A HOMOGENEOUS STARTING STOCK WITH MINIMAL INTERNAL DISCONTINUITIES. THIS STAGE IS CRUCIAL BECAUSE A HIGH-STRENGTH MARAGING STEEL CAN BE EXTREMELY SENSITIVE TO DEFECTS ONCE AGED TO ITS FINAL STRENGTH LEVEL. HOT WORKING OF T-250 ROUND BAR THE ESR INGOT IS REHEATED WITHIN A CAREFULLY CONTROLLED FORGING OR ROLLING TEMPERATURE WINDOW. THE STEEL IS THEN CONVERTED FROM THE CAST INGOT INTO BILLET AND ULTIMATELY INTO ROUND-BAR STOCK. HOT FORGING, ROTARY FORGING, HOT ROLLING OR A COMBINATION OF THESE PROCESSES MAY BE USED DEPENDING ON THE REQUIRED DIAMETER AND PRODUCTION ROUTE. THE PURPOSE OF HOT WORKING IS NOT MERELY DIMENSIONAL REDUCTION. PROPER THERMOMECHANICAL PROCESSING HELPS REFINE THE CAST STRUCTURE, BREAK DOWN SEGREGATION, IMPROVE GRAIN MORPHOLOGY AND ESTABLISH THE METALLURGICAL CONDITION REQUIRED FOR SUBSEQUENT SOLUTION TREATMENT AND AGING. LARGE-DIAMETER T-250 ROUND BAR MANUFACTURING REQUIRES PARTICULAR ATTENTION TO CENTERLINE QUALITY, DEFORMATION PENETRATION AND THERMAL UNIFORMITY. SOLUTION ANNEALING OF FE-19NI-3MO-1.4TI-0.1AL ROUND BAR AFTER HOT WORKING, THE ROUND BAR IS SUBJECTED TO A CONTROLLED SOLUTION OR ANNEALING TREATMENT SELECTED ACCORDING TO THE GOVERNING PRODUCT SPECIFICATION AND DIAMETER. THE OBJECTIVE IS TO PRODUCE A SUITABLE LOW-CARBON MARTENSITIC MATRIX CONTAINING ALLOYING ELEMENTS IN A CONDITION CAPABLE OF RESPONDING EFFECTIVELY TO AGING. UNLIKE CONVENTIONAL QUENCHED-AND-TEMPERED ALLOY STEELS, MARAGING STEELS DERIVE THEIR EXCEPTIONAL FINAL STRENGTH PRIMARILY FROM PRECIPITATION REACTIONS DURING AGING RATHER THAN FROM CARBON-DRIVEN MARTENSITIC HARDENING. PUBLISHED WORK ON T-250 REPORTS SOLUTION TREATMENT FOLLOWED BY AGING AS THE FUNDAMENTAL PROCESSING ROUTE. AGE HARDENING OF T-250 ROUND BAR THE DEFINING FEATURE OF THIS MATERIAL IS MARAGING, A COMBINATION OF MARTENSITIC TRANSFORMATION AND SUBSEQUENT PRECIPITATION HARDENING. FOLLOWING SOLUTION TREATMENT AND COOLING, THE LOW-CARBON FE-NI MATRIX FORMS A RELATIVELY SOFT, TOUGH MARTENSITIC STRUCTURE. AGING AT A RELATIVELY LOW TEMPERATURE THEN PRODUCES STRENGTHENING PRECIPITATES. RESEARCH ON T-250 IDENTIFIES A STRONG PRECIPITATION-HARDENING RESPONSE AND REPORTS HIGH TENSILE AND YIELD STRENGTHS AFTER AGING. ONE PUBLISHED COMPARISON LISTS T-250 AT APPROXIMATELY 1, 815 MPA TENSILE STRENGTH AND 1, 775 MPA YIELD STRENGTH UNDER THE CITED TEST CONDITION. COMMERCIAL NIMARK T-250 IS NORMALLY SUPPLIED IN THE SOLUTION-ANNEALED CONDITION BEFORE FINAL AGING, WITH THE MANUFACTURER IDENTIFYING AN AGING TREATMENT AROUND 900°F FOR 4–6 HOURS FOLLOWED BY AIR COOLING. THE EXACT CYCLE MUST BE SELECTED ACCORDING TO THE APPLICABLE SPECIFICATION, PRODUCT SIZE AND REQUIRED MECHANICAL PROPERTIES. MICROSTRUCTURE OF T-250 MARAGING STEEL THE SOLUTION-TREATED MATERIAL CONTAINS A LOW-CARBON MARTENSITIC MATRIX. DURING AGING, NANOSCALE PRECIPITATES DEVELOP AND DRAMATICALLY INCREASE STRENGTH. THE PRECIPITATION SEQUENCE IS ASSOCIATED WITH NICKEL-, MOLYBDENUM- AND TITANIUM-CONTAINING PHASES. SCIENTIFIC INVESTIGATIONS OF MARAGING STEELS COMMONLY IDENTIFY NI-MO-TI-CONTAINING PRECIPITATES AS MAJOR CONTRIBUTORS TO STRENGTHENING. THE ABSENCE OF LARGE CARBON-DRIVEN CARBIDE POPULATIONS IS AN IMPORTANT FEATURE OF THE MARAGING CONCEPT. THIS CONTRIBUTES TO A FAVORABLE COMBINATION OF STRENGTH, TOUGHNESS AND MACHINABILITY COMPARED WITH MANY CONVENTIONAL ULTRA-HIGH-STRENGTH STEELS. MACHINING T-250 ROUND BAR SOLUTION-TREATED T-250 IS SUBSTANTIALLY EASIER TO MACHINE THAN THE SAME STEEL AFTER PEAK AGING. FOR PRECISION COMPONENTS, MANUFACTURERS COMMONLY PERFORM ROUGH MACHINING BEFORE FINAL AGING AND FINISH MACHINING AFTERWARD, WHERE NECESSARY. THE RELATIVELY LOW DISTORTION ASSOCIATED WITH MARAGING-STEEL AGING IS AN IMPORTANT ADVANTAGE FOR PRECISION SHAFTS, TOOLING AND AEROSPACE COMPONENTS. CUTTING-TOOL SELECTION, FEED RATE, CUTTING SPEED AND COOLING STRATEGY SHOULD BE ADJUSTED TO THE ACTUAL HARDNESS AND THERMAL CONDITION OF THE BAR. SURFACE FINISHING OF FE-19NI-3MO-1.4TI-0.1AL ROUND BAR DEPENDING ON CUSTOMER REQUIREMENTS, FINISHED T-250 ROUND BAR MAY BE SUPPLIED AS HOT FINISHED, PEELED, GROUND, CENTERLESS GROUND, POLISHED OR PRECISION-MACHINED MATERIAL. FOR APPLICATIONS REQUIRING TIGHT DIMENSIONAL TOLERANCES, CENTERLESS GRINDING OR PRECISION TURNING CAN BE USED AFTER HEAT TREATMENT. SURFACE QUALITY IS PARTICULARLY IMPORTANT FOR ROTATING SHAFTS AND FATIGUE-CRITICAL AEROSPACE COMPONENTS BECAUSE SURFACE DEFECTS CAN BECOME FATIGUE INITIATION SITES. NON-DESTRUCTIVE TESTING OF T-250 ROUND BAR QUALITY-CONTROLLED VIM+ESR ROUND-BAR PRODUCTION MAY INCLUDE: ULTRASONIC TESTING FOR INTERNAL DISCONTINUITIES. MAGNETIC-PARTICLE INSPECTION FOR SURFACE AND NEAR-SURFACE DEFECTS. EDDY-CURRENT EXAMINATION FOR SELECTED FINISHED-BAR APPLICATIONS. VISUAL AND DIMENSIONAL INSPECTION. CHEMICAL ANALYSIS AND POSITIVE MATERIAL IDENTIFICATION. MECHANICAL TESTING. METALLOGRAPHIC EXAMINATION. HARDNESS TESTING. THE EXACT NDT PROCEDURE AND ACCEPTANCE CLASS SHOULD BE STATED BY THE APPLICABLE PURCHASE SPECIFICATION RATHER THAN ASSUMED FROM THE ALLOY DESIGNATION ALONE. MECHANICAL PROPERTIES AND STRENGTH T-250 IS ENGINEERED TO DELIVER APPROXIMATELY 250 KSI-CLASS ULTRA-HIGH STRENGTH WHILE RETAINING USEFUL DUCTILITY AND FRACTURE TOUGHNESS. PUBLISHED RESEARCH ON THE T-250 GRADE REPORTS TENSILE STRENGTH AROUND 1.8 GPA AFTER AGING, ALTHOUGH ACTUAL PROPERTIES DEPEND ON PRODUCT SIZE, PROCESSING HISTORY, HEAT TREATMENT, TEST DIRECTION AND GOVERNING SPECIFICATION. THE COMBINATION OF HIGH STRENGTH AND COMPARATIVELY GOOD TOUGHNESS MAKES T-250 ATTRACTIVE WHERE CONVENTIONAL HIGH-STRENGTH ALLOY STEEL WOULD PROVIDE INSUFFICIENT STRENGTH-TO-WEIGHT PERFORMANCE. APPLICATIONS OF T-250 ROUND BAR FE-19NI-3MO-1.4TI-0.1AL ROUND BAR IS SUITED TO DEMANDING APPLICATIONS INCLUDING AEROSPACE STRUCTURES, AIRCRAFT COMPONENTS, PRECISION SHAFTS, DRIVE COMPONENTS, GEARS, FASTENERS, PRESSURE-CONTAINING EQUIPMENT, DIES, TOOLING, HIGH-STRENGTH MECHANICAL PARTS AND SPECIALIZED DEFENSE EQUIPMENT. ASM INTERNATIONAL SPECIFICALLY IDENTIFIES VASCOMAX T-250 APPLICATIONS INCLUDING AEROSPACE STRUCTURES, PRESSURE VESSELS, SHAFTING, BOLTS AND FASTENERS. CURRENT COMMERCIAL DOCUMENTATION ALSO IDENTIFIES AEROSPACE, TRANSPORTATION, CONSUMER, DEFENSE, ENERGY AND INDUSTRIAL MARKETS FOR NIMARK T-250. AEROSPACE T-250 ROUND BAR AEROSPACE MANUFACTURERS USE MARAGING STEEL WHEN EXCEPTIONALLY HIGH STRENGTH, FATIGUE RESISTANCE, TOUGHNESS AND DIMENSIONAL STABILITY ARE REQUIRED. FOR AEROSPACE-GRADE PROCUREMENT, THE MATERIAL SHOULD BE ORDERED AGAINST A PRECISE SPECIFICATION SUCH AS AMS 6519, WITH THE APPROPRIATE REVISION, PRODUCT FORM, SIZE RANGE, HEAT-TREATMENT CONDITION AND INSPECTION REQUIREMENTS. PARMANU DHATU NIGAM SPECIFICALLY LISTS AMS 6519 FOR NIMARK T-250. T-250 FOR SHAFTS AND ROTATING COMPONENTS THE COMBINATION OF HIGH TENSILE STRENGTH, HIGH YIELD STRENGTH AND RELATIVELY LOW HEAT-TREATMENT DISTORTION MAKES COBALT-FREE T-250 ATTRACTIVE FOR HIGH-STRENGTH SHAFTING. VIM+ESR PRODUCTION CAN BE SELECTED WHEN ENHANCED METALLURGICAL CLEANLINESS AND INTERNAL QUALITY ARE IMPORTANT TO THE APPLICATION. TYPICAL COMPONENTS CAN INCLUDE HIGH-STRENGTH SHAFTS, DRIVE ELEMENTS, ACTUATOR COMPONENTS, PRECISION COUPLINGS, STRUCTURAL PINS AND ROTATING MECHANICAL PARTS. ADVANTAGES OF FE-19NI-3MO-1.4TI-0.1AL ROUND BAR THE PRINCIPAL ADVANTAGES INCLUDE: EXCEPTIONAL STRENGTH AFTER AGING. HIGH YIELD-TO-TENSILE STRENGTH RATIO. GOOD FRACTURE TOUGHNESS FOR AN ULTRA-HIGH-STRENGTH STEEL. EXCELLENT DIMENSIONAL STABILITY DURING AGING. GOOD MACHINABILITY IN THE SOLUTION-TREATED CONDITION. LOW CARBON CONTENT. COBALT-FREE PRECIPITATION-HARDENING SYSTEM. GOOD STRENGTH-TO-WEIGHT POTENTIAL. EXCELLENT SUITABILITY FOR PRECISION ENGINEERING. COMPATIBILITY WITH HIGH-CLEANLINESS VACUUM MELTING PRACTICES. VIM+ESR VERSUS CONVENTIONAL STEELMAKING FOR HIGH-INTEGRITY T-250 ROUND BAR, VACUUM MELTING AND SECONDARY REMELTING PROVIDE SUBSTANTIALLY GREATER CONTROL THAN CONVENTIONAL AIR MELTING. VIM PROVIDES ACCURATE INITIAL CHEMISTRY AND REDUCED ATMOSPHERIC CONTAMINATION. ESR THEN PROVIDES CONTROLLED SECONDARY MELTING AND SOLIDIFICATION. THE RESULTING METALLURGICAL CONSISTENCY CAN BE PARTICULARLY VALUABLE FOR FATIGUE-SENSITIVE AND AEROSPACE COMPONENTS, WHERE INCLUSIONS, SEGREGATION AND INTERNAL DISCONTINUITIES CAN INFLUENCE SERVICE LIFE. HOWEVER, THE MELT ROUTE MUST ALWAYS BE MATCHED TO THE PURCHASING SPECIFICATION. A VIM+ESR MANUFACTURING STATEMENT SHOULD NOT BE USED AS A SUBSTITUTE FOR CERTIFICATION TO AN APPLICABLE AEROSPACE OR MILITARY STANDARD. QUALITY CONTROL DURING MANUFACTURING A HIGH-QUALITY FE-19NI-3MO-1.4TI-0.1AL ROUND BAR MANUFACTURING PROGRAM SHOULD CONTROL THE ENTIRE PROCESS CHAIN: RAW-MATERIAL VERIFICATION. VACUUM INDUCTION MELTING. MELT CHEMISTRY VERIFICATION. ELECTRODE CASTING. ELECTROSLAG REMELTING. ESR INGOT INSPECTION. HOMOGENIZATION WHERE REQUIRED. HOT FORGING OR ROLLING. SOLUTION TREATMENT. CONTROLLED AGING WHERE SPECIFIED. STRAIGHTENING. PEELING OR GRINDING. DIMENSIONAL INSPECTION. MECHANICAL TESTING. METALLOGRAPHIC INSPECTION. NONDESTRUCTIVE TESTING. FINAL CHEMICAL CERTIFICATION. MATERIAL TRACEABILITY AND HEAT-NUMBER CONTROL. THE OBJECTIVE IS A FULLY TRACEABLE ROUND BAR WITH REPRODUCIBLE CHEMISTRY, CLEAN INTERNAL STRUCTURE, CONTROLLED GRAIN STRUCTURE AND SPECIFIED MECHANICAL PROPERTIES. INTERNATIONAL TRADE AND SEARCH NAMES FOR INTERNATIONAL PURCHASING, THE MATERIAL MAY APPEAR UNDER SEVERAL SEARCH AND COMMERCIAL TERMS, INCLUDING: T-250 MARAGING STEEL ROUND BAR T250 MARAGING STEEL BAR 18% NICKEL MARAGING STEEL ROUND BAR 18NI T-250 ROUND BAR 19NI3MO1.4TI MARAGING STEEL 19NI-3MO-1.4TI-0.1AL STEEL COBALT-FREE MARAGING STEEL ROUND BAR COBALT FREE MARAGING STEEL UNS K92150 ROUND BAR UNS K92150 STEEL BAR NIMARK T-250 ROUND BAR NIMARK T-250 STEEL BAR VASCOMAX T-250 ROUND BAR VASCOMAX T250 STEEL 250 KSI MARAGING STEEL ULTRA HIGH STRENGTH MARAGING STEEL AEROSPACE MARAGING STEEL BAR MARAGING STEEL AEROSPACE ROUND BAR HIGH TENSILE MARAGING STEEL ROUND BAR PRECISION MARAGING STEEL BAR VIM ESR MARAGING STEEL VACUUM MELTED MARAGING STEEL ROUND BAR THESE PHRASES TARGET BROAD COMMERCIAL SEARCH INTENT AROUND MARAGING STEEL, T-250, HIGH-STRENGTH STEEL, AEROSPACE STEEL, UNS K92150 AND ROUND-BAR MANUFACTURING. CURRENT WEB RESULTS SHOW ACTIVE COMMERCIAL USE OF TERMS SUCH AS “MARAGING STEEL ROUND BAR, ” “T-250, ” “UNS K92150, ” AEROSPACE MARAGING STEEL AND VASCOMAX T-250. BECAUSE PUBLIC SEARCH RESULTS DO NOT PROVIDE A RELIABLE, UNIVERSALLY COMPARABLE WORLDWIDE KEYWORD-VOLUME DATASET IN THE CITED SOURCES, THE KEYWORD SET ABOVE SHOULD BE TREATED AS HIGH-DEMAND GLOBAL SEARCH-INTENT TERMINOLOGY, NOT AS FABRICATED NUMERICAL SEARCH-VOLUME CLAIMS. FE-19NI-3MO-1.4TI-0.1AL ROUND BAR MANUFACTURING FOR GLOBAL SUPPLY FOR INTERNATIONAL SUPPLY, MANUFACTURERS SHOULD PROVIDE COMPLETE DOCUMENTATION COVERING: HEAT NUMBER AND TRACEABILITY. CHEMICAL COMPOSITION. MELTING ROUTE. PRODUCT SIZE AND DIMENSIONAL TOLERANCES. HEAT-TREATMENT CONDITION. MECHANICAL-TEST RESULTS. HARDNESS. NONDESTRUCTIVE-TEST RESULTS WHERE SPECIFIED. SURFACE CONDITION. APPLICABLE SPECIFICATION AND REVISION. INSPECTION CERTIFICATE. COUNTRY-OF-ORIGIN DOCUMENTATION WHEN REQUIRED. EN 10204 DOCUMENTATION MAY ALSO BE REQUESTED BY INTERNATIONAL BUYERS, BUT THE CERTIFICATE TYPE SHOULD BE AGREED CONTRACTUALLY RATHER THAN ASSUMED TO BE INTRINSIC TO THE ALLOY DESIGNATION. FE-19NI-3MO-1.4TI-0.1AL VIM+ESR ROUND BAR MANUFACTURER A QUALIFIED MANUFACTURER OF FE-19NI-3MO-1.4TI-0.1AL VIM+ESR ROUND BAR MUST COMBINE VACUUM METALLURGY, SECONDARY REMELTING, PRECISION HOT WORKING, CONTROLLED HEAT TREATMENT AND RIGOROUS QUALITY ASSURANCE. THE MOST IMPORTANT PURCHASING DISTINCTION IS BETWEEN THE NOMINAL T-250 COMPOSITION AND A FULLY CERTIFIED COMMERCIAL GRADE. THE CHEMISTRY MAY IDENTIFY A MATERIAL AS BELONGING TO THE T-250 FAMILY, BUT COMPLIANCE WITH UNS K92150, AMS 6519 OR MIL-S-47319A REQUIRES VERIFICATION AGAINST THE COMPLETE SPECIFICATION AND APPLICABLE REVISION. CONCLUSION FE-19NI-3MO-1.4TI-0.1AL VIM+ESR ROUND BAR REPRESENTS A HIGH-STRENGTH, COBALT-FREE MARAGING-STEEL TECHNOLOGY CENTERED ON A NICKEL-RICH, LOW-CARBON IRON MATRIX STRENGTHENED THROUGH MOLYBDENUM- AND TITANIUM-ASSOCIATED PRECIPITATION. THE MATERIAL IS STRONGLY ASSOCIATED WITH T-250 MARAGING STEEL, VASCOMAX T-250, NIMARK T-250, SAE T-250 AND UNS K92150. CURRENT COMMERCIAL DOCUMENTATION IDENTIFIES AMS 6519 AND MIL-S-47319A TYPE I, CLASS 1 AS APPLICABLE SPECIFICATIONS FOR NIMARK T-250. FOR PRECISION AEROSPACE, DEFENSE, TOOLING, SHAFTING AND OTHER HIGH-STRESS APPLICATIONS, VIM+ESR MANUFACTURING CAN PROVIDE A CONTROLLED METALLURGICAL ROUTE FOR PRODUCING HIGH-INTEGRITY ROUND BAR. THE FINAL PRODUCT SHOULD, HOWEVER, ALWAYS BE PURCHASED AND CERTIFIED AGAINST THE EXACT GOVERNING SPECIFICATION RATHER THAN RELYING SOLELY ON A CHEMICAL-EQUIVALENT DESIGNATION. PRIMARY KEYWORDS FE-19NI-3MO-1.4TI-0.1AL ROUND BAR MANUFACTURING, T-250 MARAGING STEEL ROUND BAR, T250 MARAGING STEEL, T-250 STEEL BAR, UNS K92150 ROUND BAR, UNS K92150 STEEL, NIMARK T-250, VASCOMAX T-250, VASCOMAX T250, COBALT-FREE MARAGING STEEL, 18NI MARAGING STEEL, 19NI3MO1.4TI STEEL, 250 KSI MARAGING STEEL, ULTRA HIGH STRENGTH STEEL ROUND BAR, AEROSPACE MARAGING STEEL, AEROSPACE STEEL ROUND BAR, MARAGING STEEL MANUFACTURER, MARAGING STEEL SUPPLIER, MARAGING STEEL BAR MANUFACTURER, VIM ESR STEEL, VIM+ESR ROUND BAR, VACUUM MELTED STEEL BAR, HIGH STRENGTH ALLOY STEEL ROUND BAR, PRECIPITATION HARDENING STEEL, MARAGING STEEL ROUND BAR SUPPLIER, AMS 6519 STEEL BAR, MIL-S-47319A STEEL, T-250 AEROSPACE STEEL, PRECISION MARAGING STEEL BAR, HIGH TENSILE STEEL ROUND BAR.
