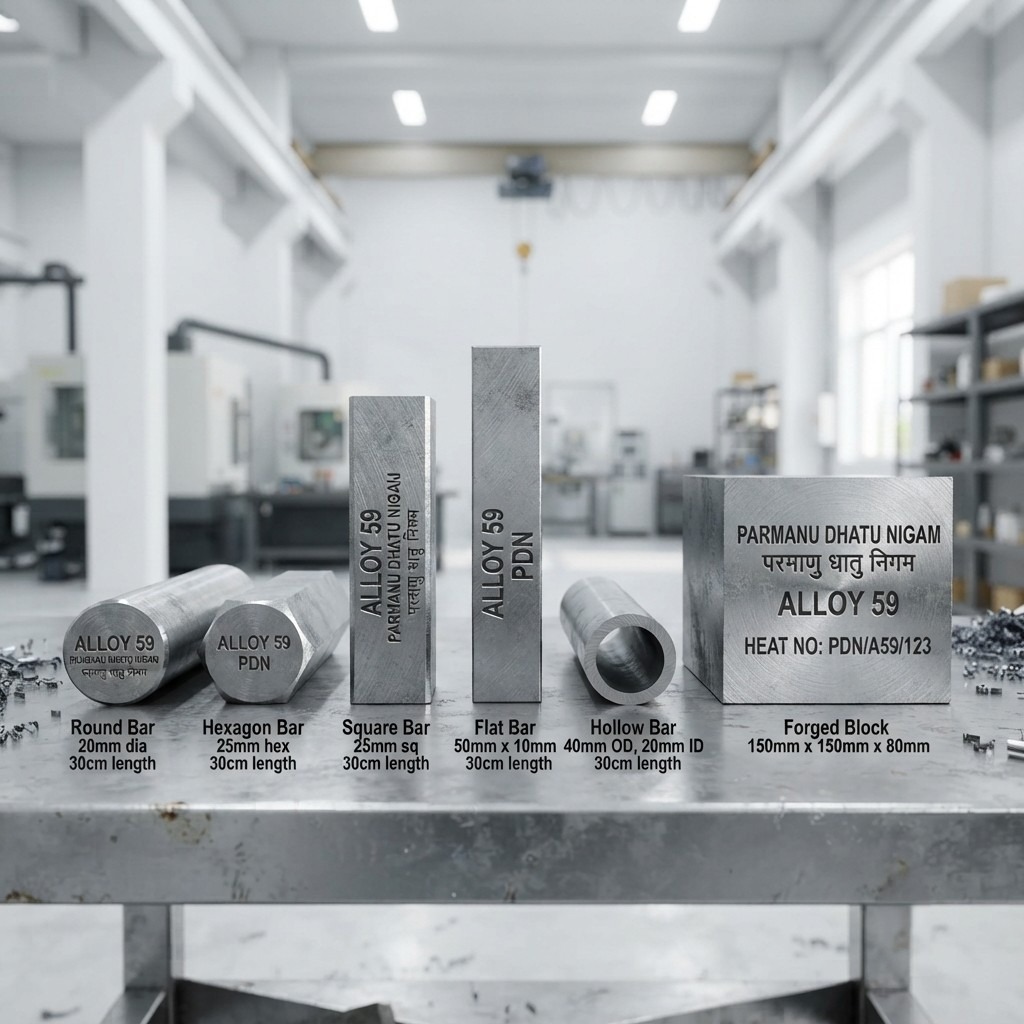

ALLOY 59 BAR MANUFACTURING: COMPLETE GUIDE TO UNS N06059, EN 2.4605 NICR23MO16AL NICKEL ALLOY ROUND, HEX, SQUARE, FLAT, HOLLOW BAR & FORGED BLOCK FOCUS: ALLOY 59 BAR, ALLOY 59 ROUND BAR, UNS N06059 BAR, N06059 ROUND BAR, ALLOY 59 EQUIVALENT, ALLOY 59 MATERIAL, ALLOY 59 SPECIFICATION, ALLOY 59 MANUFACTURER, ALLOY 59 SUPPLIER, ALLOY 59 FORGED BAR, 2.4605 BAR, NICR23MO16AL BAR, NICKEL ALLOY BAR, NICKEL ALLOY ROUND BAR, CORROSION RESISTANT ALLOY BAR, ASTM B574 N06059. DATA NOTE: EXACT WORLDWIDE GOOGLE KEYWORD VOLUMES ARE NOT PUBLICLY EXPOSED IN A RELIABLE, UNIVERSAL DATASET. THE KEYWORD SET BELOW IS THEREFORE BUILT AROUND INTERNATIONALLY USED PRODUCT TERMINOLOGY, MATERIAL-DESIGNATION SEARCHES, SPECIFICATION SEARCHES, AND HIGH-INTENT INDUSTRIAL SEARCH PHRASES RATHER THAN CLAIMING FABRICATED MONTHLY SEARCH-VOLUME FIGURES. 1) INTRODUCTION TO ALLOY 59 BAR MANUFACTURING ALLOY 59 IS A LOW-CARBON, LOW-SILICON NICKEL-CHROMIUM-MOLYBDENUM CORROSION-RESISTANT ALLOY IDENTIFIED INTERNATIONALLY AS UNS N06059 AND WERKSTOFF NO. 2.4605) ITS EN MATERIAL DESIGNATION IS NICR23MO16AL. THE ALLOY IS DESIGNED FOR DEMANDING CHEMICAL, PETROCHEMICAL, ENVIRONMENTAL, ENERGY AND OTHER HIGHLY CORROSIVE APPLICATIONS WHERE RESISTANCE TO BOTH OXIDIZING AND REDUCING MEDIA IS IMPORTANT. ALLOY 59 IS MANUFACTURED INTO A WIDE RANGE OF SEMI-FINISHED AND FINISHED FORMS, INCLUDING: • ALLOY 59 ROUND BAR • ALLOY 59 HEXAGON BAR • ALLOY 59 HEX BAR • ALLOY 59 SQUARE BAR • ALLOY 59 RECTANGULAR BAR • ALLOY 59 FLAT BAR • ALLOY 59 HOLLOW BAR • ALLOY 59 FORGED BAR • ALLOY 59 FORGED BLOCK • ALLOY 59 BILLET • ALLOY 59 ROD • ALLOY 59 PRECISION-MACHINED BAR • ALLOY 59 CUSTOM-DRAWN COMPONENTS FOR CONVENTIONAL ROD AND BAR PRODUCTS, ASTM B574 IS THE KEY ASTM SPECIFICATION. THE CURRENT ASTM B574-23 SPECIFICALLY INCLUDES UNS N06059 AND COVERS ROD/BAR PRODUCTS IN SPECIFIED DIMENSIONAL RANGES AND CONDITIONS. 2) ALLOY 59 INTERNATIONAL EQUIVALENT DESIGNATIONS ONE OF THE MOST IMPORTANT AND PROCUREMENT CONSIDERATIONS IS THAT THE SAME ALLOY CAN APPEAR UNDER DIFFERENT NATIONAL, STANDARDS-BASED AND COMMERCIAL DESIGNATIONS. COUNTRY / SYSTEM - ALLOY 59 DESIGNATION COMMERCIAL NAME: ALLOY 59 NICKEL ALLOY NAME: NICKEL ALLOY 59 UNS N06059 WERKSTOFF NO 2.4605 EN DESIGNATION: NICR23MO16AL DIN 2.4605 / NICR23MO16AL GERMAN COMMERCIAL DESIGNATION: NICROFER 5923 HMO VDM COMMERCIAL DESIGNATION: VDM ALLOY 59 BÖHLER DESIGNATION: BÖHLER L059 CHINA: NS3311 / H06059 VDTÜV: MATERIAL SHEET 505 ASTM BAR/ROD: ASTM B574 ASME BAR/ROD: ASME SB-574 ASTM FORGINGS: ASTM B564 ASME FORGINGS: ASME SB-564 ASTM PLATE/SHEET/STRIP: ASTM B575 ASME PLATE/SHEET/STRIP: ASME SB-575 NACE: MR0175 / ISO 15156, WHERE APPLICABLE VDM IDENTIFIES ALLOY 59 AS 2.4605/N06059, WHILE VOESTALPINE LISTS THE EN DESIGNATION AS NICR23MO16AL AND IDENTIFIES ASTM B574, ASTM B564 AND NACE MR0175/ISO 15156 AMONG APPLICABLE STANDARDS. THE CHINESE DESIGNATION NS3311/H06059 IS ALSO ASSOCIATED WITH N06059 AND GB/T 15007-2017 IN MATERIAL DATABASES. IMPORTANT TERMINOLOGY DISTINCTION THESE DESIGNATIONS SHOULD NOT AUTOMATICALLY BE TREATED AS INTERCHANGEABLE PRODUCT SPECIFICATIONS. A MATERIAL DESIGNATION ESTABLISHES THE ALLOY IDENTITY, WHILE THE PRODUCT SPECIFICATION ESTABLISHES REQUIREMENTS FOR MANUFACTURING, DIMENSIONS, TESTING, HEAT TREATMENT AND CERTIFICATION. 3) ALLOY 59 TRADE NAMES AND BRAND NAMES COMMON COMMERCIAL NAMES ENCOUNTERED IN INTERNATIONAL PURCHASING INCLUDE: NICROFER 5923 HMO NICROFER 5923 HMO IS A WELL-KNOWN COMMERCIAL DESIGNATION ASSOCIATED WITH ALLOY 59 / 2.4605 / N06059) VDM ALLOY 59 PARMANU DHATU NIGAM MARKETS THE ALLOY AS VDM ALLOY 59, IDENTIFYING IT AS 2.4605/N06059) BÖHLER L059 VOESTALPINE HIGH PERFORMANCE METALS IDENTIFIES BÖHLER L059 AS 2.4605/N06059) OTHER SEARCH TERMINOLOGY INDUSTRIAL BUYERS MAY ALSO SEARCH FOR: • ALLOY 59 • NICKEL ALLOY 59 • N06059 • UNS N06059 • 2.4605 • NICR23MO16AL • NICROFER 5923 HMO • VDM ALLOY 59 • BÖHLER L059 • NS3311 • H06059 THESE TERMS ARE USEFUL FOR INTERNATIONAL BECAUSE ENGINEERS FREQUENTLY SEARCH BY UNS NUMBER, WERKSTOFF NUMBER, EN DESIGNATION, COMMERCIAL NAME OR ASTM SPECIFICATION, RATHER THAN SIMPLY 'ALLOY 59.' 4) CHEMICAL COMPOSITION OF ALLOY 59 ALLOY 59 DERIVES MUCH OF ITS CORROSION RESISTANCE FROM ITS NICKEL-CHROMIUM-MOLYBDENUM CHEMISTRY COMBINED WITH EXCEPTIONALLY LOW CARBON AND SILICON. A REPRESENTATIVE ASTM B574-BASED CHEMISTRY IS: ELEMENT - COMPOSITION, WT.% NICKEL BALANCE CHROMIUM 22.0–24.0 MOLYBDENUM 15.0–16.5 IRON ≤1.50 ALUMINUM 0.10–0.40 COPPER ≤0.50 COBALT ≤0.30 MANGANESE ≤0.50 SILICON ≤0.10 CARBON ≤0.010 PHOSPHORUS ≤0.015 SULFUR ≤0.010 THE EXACT ACCEPTANCE LIMITS SHOULD ALWAYS BE TAKEN FROM THE EDITION OF THE PRODUCT SPECIFICATION STATED ON THE PURCHASE ORDER/MTC. VDM AND VOESTALPINE DATA LIKEWISE IDENTIFY APPROXIMATELY 22–24% CR, 15–16.5% MO, BALANCE NI AND VERY LOW C/SI. 5) WHY ALLOY 59 IS USED FOR CORROSIVE-SERVICE BARS ALLOY 59 COMBINES: • HIGH CHROMIUM CONTENT • HIGH MOLYBDENUM CONTENT • NICKEL-RICH MATRIX • VERY LOW CARBON • VERY LOW SILICON • GOOD RESISTANCE TO PITTING CORROSION • GOOD RESISTANCE TO CREVICE CORROSION • RESISTANCE TO STRESS-CORROSION CRACKING • RESISTANCE TO MINERAL ACIDS • GOOD WELDING CHARACTERISTICS • GOOD THERMAL STABILITY • VDM SPECIFICALLY DESCRIBES RESISTANCE IN OXIDIZING AND REDUCING ENVIRONMENTS AND STRONG RESISTANCE TO CHLORIDE-INDUCED PITTING AND CREVICE CORROSION AS IMPORTANT CHARACTERISTICS. THIS MAKES ALLOY 59 ATTRACTIVE FOR: • CHEMICAL PROCESSING EQUIPMENT • PHARMACEUTICAL PROCESS EQUIPMENT • PETROCHEMICAL PLANTS • FLUE-GAS DESULFURIZATION SYSTEMS • WASTE-INCINERATION EQUIPMENT • ACID COOLERS • HEAT EXCHANGERS • SCRUBBERS • SEAWATER EQUIPMENT • CHLORIDE-CONTAINING PROCESS SYSTEMS • ACETIC-ACID PROCESSING • GEOTHERMAL EQUIPMENT • OIL & GAS APPLICATIONS 6) ALLOY 59 BAR MANUFACTURING PROCESS THE MANUFACTURING OF A HIGH-QUALITY ALLOY 59 BAR STARTS LONG BEFORE MACHINING. THE METALLURGY OF MELTING, REFINING, HOMOGENIZATION, HOT WORKING AND SOLUTION ANNEALING DETERMINES THE FINAL MICROSTRUCTURE AND CORROSION PERFORMANCE. STEP 1 — SELECTION OF RAW MATERIALS THE PRODUCER BEGINS WITH CONTROLLED NICKEL, CHROMIUM, MOLYBDENUM AND OTHER ALLOYING ADDITIONS. BECAUSE ALLOY 59 IS PARTICULARLY SENSITIVE TO UNDESIRABLE CONTAMINATION AND INTERMETALLIC PRECIPITATION, RAW MATERIALS MUST BE SELECTED AND CONTROLLED CAREFULLY. THE MANUFACTURING OBJECTIVE IS TO ACHIEVE: LOW C + LOW SI + CONTROLLED CR + CONTROLLED MO + CLEAN NI-BASED MATRIX STEP 2 — VACUUM MELTING / PRIMARY MELTING HIGH-PERFORMANCE PRODUCERS CAN USE CONTROLLED MELTING ROUTES SUCH AS: VIM → ESR OR AN ALTERNATIVE CONTROLLED MELTING ROUTE FOLLOWED BY ESR. VOESTALPINE SPECIFICALLY LISTS VIM + ESR OR AIR-MELTED + ESR FOR BÖHLER L059) WHY ESR MATTERS ELECTROSLAG REMELTING CAN HELP IMPROVE: • CHEMICAL HOMOGENEITY • CLEANLINESS • INCLUSION CONTROL • INTERNAL QUALITY • SURFACE QUALITY • STRUCTURAL UNIFORMITY FOR CRITICAL CORROSION-RESISTANT NICKEL ALLOY PRODUCTS, INTERNAL QUALITY IS PARTICULARLY IMPORTANT. 7) ALLOY 59 BILLET AND BLOCK MANUFACTURING THE MOLTEN ALLOY IS CONVERTED INTO AN APPROPRIATE SEMI-FINISHED FORM. DEPENDING ON THE PRODUCER'S MANUFACTURING ROUTE, THIS MAY INVOLVE: MELTING → REFINING → CASTING → BILLET → HOMOGENIZATION → HOT WORKING A BILLET IS THEN USED AS THE STARTING STOCK FOR PRODUCING BARS AND OTHER LONG PRODUCTS. ALLOY 59 FORGED BLOCK LARGE ALLOY 59 BLOCKS OR FORGED BLANKS ARE GENERALLY PRODUCED THROUGH A FORGING ROUTE RATHER THAN SIMPLY TREATING THEM AS STANDARD ASTM B574 BAR. A TYPICAL ROUTE CAN BE: ALLOY MELTING → ESR → CAST BILLET/INGOT → REHEATING → OPEN-DIE FORGING → UPSETTING/DRAWING → SOLUTION ANNEALING → MACHINING → INSPECTION WHERE THE PURCHASED PRODUCT IS A FORGING, ASTM B564 / ASME SB-564 IS A RELEVANT SPECIFICATION FOR ALLOY 59 FORGINGS. ASTM B564 EXPLICITLY INCLUDES UNS N06059 AMONG COVERED LOW-CARBON NI-CR-MO ALLOYS. 8) ALLOY 59 ROUND BAR MANUFACTURING ALLOY 59 ROUND BAR IS ONE OF THE MOST COMMERCIALLY IMPORTANT FORMS. A REPRESENTATIVE PRODUCTION ROUTE IS: RAW MATERIALS → MELTING → ESR → BILLET → REHEATING → HOT FORGING/ROLLING → SOLUTION ANNEALING → DESCALING → STRAIGHTENING → GRINDING/TURNING → ULTRASONIC TESTING → DIMENSIONAL INSPECTION → MARKING → MTC ASTM B574-23 COVERS ALLOY N06059 RODS AND BARS AND SPECIFIES DIFFERENT PRODUCT/FINISH CONDITIONS ACCORDING TO DIMENSIONAL RANGES. IT INCLUDES SOLUTION-ANNEALED AND PICKLED/MECHANICALLY DESCALED PRODUCTS AND LARGER GROUND/TURNED PRODUCTS. COMMON ALLOY 59 ROUND BAR FINISHES • HOT ROLLED • HOT FORGED • COLD FINISHED • GROUND • CENTERLESS GROUND • TURNED • PEELED • POLISHED TYPICAL BUYER SEARCH TERMS • ALLOY 59 ROUND BAR • UNS N06059 ROUND BAR • N06059 ROUND BAR SUPPLIER • 2.4605 ROUND BAR • ALLOY 59 ROD • ASTM B574 N06059 • ASTM B574 ALLOY 59 ROUND BAR • NICKEL ALLOY 59 ROUND BAR 9) ALLOY 59 HEXAGON BAR MANUFACTURING ALLOY 59 HEX BAR IS MANUFACTURED FOR APPLICATIONS REQUIRING SIX-SIDED GEOMETRY FOR MACHINING, GRIPPING OR FASTENING. POSSIBLE PRODUCTION ROUTES INCLUDE: BILLET → HOT WORKING → BAR ROLLING → COLD FINISHING → HEXAGONAL FORMING → SOLUTION ANNEALING → STRAIGHTENING → MACHINING/FINISHING OR: ROUND BAR → PRECISION COLD FORMING/MACHINING → HEX BAR HEXAGONAL ALLOY 59 BAR IS PARTICULARLY USEFUL FOR: • MACHINED COMPONENTS • VALVE COMPONENTS • FASTENER BLANKS • INSTRUMENTATION COMPONENTS • CHEMICAL-PROCESSING COMPONENTS • CUSTOM CNC PARTS FOR CERTIFICATION, THE APPLICABLE BAR SPECIFICATION AND MANUFACTURING CONDITION SHOULD BE STATED EXPLICITLY RATHER THAN ASSUMING EVERY HEXAGONAL PRODUCT AUTOMATICALLY FALLS UNDER EVERY REQUIREMENT OF ASTM B574. 10) ALLOY 59 SQUARE BAR MANUFACTURING ALLOY 59 SQUARE BARS CAN BE PRODUCED BY: • HOT FORGING • BAR ROLLING • COLD FORMING • MACHINING FROM ROUND OR RECTANGULAR STOCK • CUSTOM FORGING THE PRODUCTION SEQUENCE GENERALLY INCLUDES: BILLET PREPARATION → REHEATING → HOT WORKING → SIZING → SOLUTION ANNEALING → DESCALING → STRAIGHTENING → DIMENSIONAL FINISHING SQUARE BARS ARE OFTEN ORDERED FOR FABRICATED AND MACHINED CORROSION-RESISTANT COMPONENTS. 11) ALLOY 59 RECTANGULAR BAR MANUFACTURING RECTANGULAR ALLOY 59 BARS REQUIRE CAREFUL CONTROL OF: • WIDTH • THICKNESS • SQUARENESS • STRAIGHTNESS • SURFACE CONDITION • INTERNAL SOUNDNESS LARGE RECTANGULAR SECTIONS ARE COMMONLY PRODUCED BY FORGING OR CONTROLLED HOT WORKING, FOLLOWED BY MACHINING OR GRINDING WHERE CLOSE DIMENSIONAL TOLERANCES ARE REQUIRED. TYPICAL APPLICATIONS INCLUDE: • CHEMICAL PROCESSING MACHINERY • STRUCTURAL CORROSION-RESISTANT COMPONENTS • MACHINED PLATES/BLANKS • HEAT-EXCHANGER COMPONENTS • PUMP AND VALVE COMPONENTS • CUSTOM-ENGINEERED PARTS 12) ALLOY 59 FLAT BAR MANUFACTURING ALLOY 59 FLAT BAR MAY BE PRODUCED FROM FORGED/ROLLED STOCK AND SUBSEQUENTLY CUT AND FINISHED TO CUSTOMER DIMENSIONS. TYPICAL MANUFACTURING OPERATIONS INCLUDE: 1. BILLET PRODUCTION 2. REHEATING 3. HOT ROLLING OR FORGING 4. SOLUTION ANNEALING 5. DESCALING 6. STRAIGHTENING 7. SAW CUTTING 8. GRINDING 9. DIMENSIONAL INSPECTION FOR FLAT PRODUCTS SUCH AS PLATE, SHEET AND STRIP, ASTM B575 IS THE RELEVANT ASTM SPECIFICATION RATHER THAN B574) ASTM B575 EXPLICITLY COVERS UNS N06059 AMONG ITS LOW-CARBON NICKEL-CHROMIUM-MOLYBDENUM ALLOYS. THEREFORE, A PURCHASER SHOULD DISTINGUISH BETWEEN: ALLOY 59 FLAT BAR → BAR/FORGING SPECIFICATION AS APPLICABLE AND ALLOY 59 PLATE/SHEET/STRIP → ASTM B575 / ASME SB-575 WHERE SPECIFIED. 13) ALLOY 59 HOLLOW BAR MANUFACTURING ALLOY 59 HOLLOW BAR IS A SPECIALIZED PRODUCT. POSSIBLE MANUFACTURING ROUTES INCLUDE: • HOLLOW FORGING • PIERCING • EXTRUSION • MACHINING FROM SOLID BAR • TREPANNING • CUSTOM FORGED HOLLOW STOCK A TYPICAL ROUTE MAY BE: ALLOY 59 BILLET → REHEATING → PIERCING/FORGING → HOLLOW REDUCTION → SOLUTION ANNEALING → SIZING → MACHINING → NDT HOLLOW BAR SHOULD NOT AUTOMATICALLY BE CERTIFIED AS SEAMLESS PIPE MERELY BECAUSE IT HAS A HOLLOW GEOMETRY. FOR PRESSURE-CONTAINING TUBE/PIPE APPLICATIONS, THE APPROPRIATE ASTM/ASME PIPE OR TUBE SPECIFICATION MUST BE SPECIFIED SEPARATELY. 14) ALLOY 59 SOLUTION ANNEALING SOLUTION ANNEALING IS A CRITICAL PART OF ALLOY 59 MANUFACTURING. THE OBJECTIVE IS TO ESTABLISH A SUITABLE HOMOGENEOUS MICROSTRUCTURE AND DISSOLVE UNDESIRABLE PHASES FORMED DURING PRIOR THERMAL AND MECHANICAL PROCESSING. AFTER SOLUTION ANNEALING, THE PRODUCT MAY UNDERGO: • WATER QUENCHING • RAPID COOLING • PICKLING • MECHANICAL DESCALING • GRINDING • TURNING • STRAIGHTENING THE EXACT HEAT-TREATMENT TEMPERATURE, HOLDING TIME AND COOLING PROCEDURE SHOULD BE CONTROLLED ACCORDING TO THE APPLICABLE MATERIAL SPECIFICATION AND PRODUCER'S QUALIFIED MANUFACTURING PROCEDURE. 15) COLD WORKING OF ALLOY 59 BARS COLD WORKING CAN BE USED TO ACHIEVE: • IMPROVED DIMENSIONAL ACCURACY • BETTER SURFACE FINISH • INCREASED STRENGTH • CONTROLLED GEOMETRY • SMALLER DIAMETER BAR PRODUCTION ASTM B574 SPECIFICALLY RECOGNIZES COLD-FINISHED CONDITIONS FOR N06059 WITHIN ITS COVERED DIMENSIONAL RANGE. COLD-WORKED ALLOY 59 CAN HAVE SUBSTANTIALLY HIGHER STRENGTH THAN SOLUTION-ANNEALED MATERIAL, BUT INCREASED STRENGTH GENERALLY COMES WITH REDUCED DUCTILITY. THEREFORE, THE PURCHASE SPECIFICATION SHOULD IDENTIFY THE REQUIRED CONDITION RATHER THAN MERELY STATING 'ALLOY 59.' 16) ALLOY 59 BAR SURFACE FINISHING DEPENDING ON CUSTOMER REQUIREMENTS, ALLOY 59 BARS CAN RECEIVE: PICKLED FINISH REMOVES SCALE AND SURFACE OXIDES FOLLOWING HEAT TREATMENT. MECHANICALLY DESCALED FINISH USES CONTROLLED MECHANICAL PROCESSES TO REMOVE SCALE. GROUND FINISH PROVIDES IMPROVED DIMENSIONAL ACCURACY AND SURFACE QUALITY. TURNED FINISH USED FOR PRECISION DIMENSIONAL CONTROL. POLISHED FINISH USED WHEN ENHANCED SURFACE APPEARANCE AND LOW ROUGHNESS ARE REQUIRED. ASTM B574 SPECIFICALLY RECOGNIZES SOLUTION-ANNEALED, PICKLED/MECHANICALLY DESCALED AND GROUND/TURNED CONDITIONS FOR APPLICABLE N06059 ROD/BAR DIMENSIONS. 17) ALLOY 59 BAR INSPECTION AND TESTING A QUALITY ALLOY 59 BAR MANUFACTURING PROGRAM CAN INCLUDE: CHEMICAL ANALYSIS VERIFICATION OF: • NI • CR • MO • FE • AL • CO • CU • MN • SI • C • P • S MECHANICAL TESTING DEPENDING ON THE APPLICABLE SPECIFICATION: • TENSILE STRENGTH • YIELD STRENGTH • ELONGATION • HARDNESS ASTM B574 REQUIRES CHEMICAL AND MECHANICAL CONFORMITY FOR COVERED ROD/BAR PRODUCTS. NON-DESTRUCTIVE TESTING DEPENDING ON PRODUCT FORM, ORDER REQUIREMENTS AND SPECIFICATION: • ULTRASONIC TESTING • EDDY-CURRENT TESTING • LIQUID PENETRANT TESTING • VISUAL INSPECTION • DIMENSIONAL INSPECTION ASTM B564, FOR EXAMPLE, INCLUDES TENSION TESTING AND NONDESTRUCTIVE ULTRASONIC EXAMINATION REQUIREMENTS FOR FORGINGS. 18) TYPICAL MECHANICAL PROPERTIES OF ALLOY 59 REPRESENTATIVE SOLUTION-ANNEALED VALUES REPORTED FOR ALLOY 59 INCLUDE: PROPERTY - TYPICAL/MINIMUM REFERENCE VALUE TENSILE STRENGTH ≥690 MPA 0.2% YIELD STRENGTH ≥340 MPA ELONGATION ≥40% DENSITY ~8.60 G/CM³ ELASTIC MODULUS ~210 GPA THERMAL CONDUCTIVITY AT 20°C ~10.4 W/M·K VALUES CAN VARY BY PRODUCT FORM, SPECIFICATION, HEAT-TREATMENT CONDITION AND TEST REQUIREMENTS. 19) ALLOY 59 VS ALLOY C-276 VS ALLOY C-22 ALLOY 59 IS FREQUENTLY COMPARED WITH OTHER HIGH-PERFORMANCE NICKEL CORROSION ALLOYS. ALLOY 59 UNS N06059 KEY CHARACTERISTIC: NI-CR-MO ALLOY WITH VERY LOW C/SI ALLOY C-276 UNS N10276 KEY CHARACTERISTIC: NI-CR-MO-W CORROSION ALLOY ALLOY C-22 UNS N06022 KEY CHARACTERISTIC: NI-CR-MO-W CORROSION ALLOY ALLOY C-4 UNS N06455 KEY CHARACTERISTIC: NI-MO-CR CORROSION ALLOY ALLOY 625 UNS N06625 KEY CHARACTERISTIC: NI-CR-MO-NB ALLOY ALLOY 31 UNS N08031 KEY CHARACTERISTIC: HIGH-ALLOY NI-FE-CR-MO MATERIAL ALLOY 59 IS DISTINCTIVE BECAUSE ITS DESIGN EMPHASIZES A LOW-CARBON/LOW-SILICON NI-CR-MO COMPOSITION WITHOUT THE TUNGSTEN ADDITIONS FOUND IN SEVERAL RELATED C-SERIES GRADES. HAYNES' ALLOY-GROUP INFORMATION IDENTIFIES ALLOY 59 AS UNS N06059 WITH APPROXIMATELY 23% CR AND 16% MO. 20. ALLOY 59 STANDARDS — COMPLETE PROCUREMENT REFERENCE ASTM STANDARDS ASTM B574 ASTM B574 — STANDARD SPECIFICATION FOR LOW-CARBON NICKEL-CHROMIUM-MOLYBDENUM ... ALLOY ROD AND BAR THIS IS THE PRINCIPAL ASTM SPECIFICATION TO INVESTIGATE FOR ALLOY 59/N06059 ROD AND BAR. THE ACTIVE ASTM B574-23 INCLUDES N06059 AND COVERS SPECIFIED HOT- AND COLD-FINISHED ROD/BAR CONDITIONS. ASTM B564 ASTM B564 — STANDARD SPECIFICATION FOR NICKEL ALLOY FORGINGS APPLICABLE TO ALLOY 59 FORGINGS, INCLUDING UNS N06059) ASTM B575 ASTM B575 — STANDARD SPECIFICATION FOR LOW-CARBON NICKEL-CHROMIUM-MOLYBDENUM ... PLATE, SHEET AND STRIP INCLUDES UNS N06059 FOR PLATE, SHEET AND STRIP. ASME STANDARDS CORRESPONDING ASME SPECIFICATIONS INCLUDE: • ASME SB-574 — NICKEL ALLOY ROD/BAR • ASME SB-564 — NICKEL ALLOY FORGINGS • ASME SB-575 — NICKEL ALLOY PLATE/SHEET/STRIP ASME SB DESIGNATIONS SHOULD BE SPECIFIED WHERE ASME CONSTRUCTION-CODE COMPLIANCE IS REQUIRED. DIN / EN STANDARDS RELEVANT ALLOY 59 MATERIAL DESIGNATIONS INCLUDE: • W.NR. 2.4605 • NICR23MO16AL • DIN 17744 • DIN 17752 INDUSTRY MATERIAL DATABASES AND MANUFACTURER DATA IDENTIFY DIN 17744/17752 ALONGSIDE ASTM B574/B564 FOR ALLOY 59) VDTÜV VDTÜV MATERIAL SHEET 505 IS AN IMPORTANT EUROPEAN TECHNICAL REFERENCE ASSOCIATED WITH ALLOY 59. THIS DESIGNATION FREQUENTLY APPEARS IN EUROPEAN PURCHASING SPECIFICATIONS FOR ALLOY 59 BAR. NACE / ISO WHERE APPLICABLE TO SOUR-SERVICE ENVIRONMENTS: NACE MR0175 / ISO 15156 MAY BE RELEVANT. HOWEVER, THIS DOES NOT MEAN THAT SIMPLY ORDERING N06059 AUTOMATICALLY MAKES A COMPONENT COMPLIANT WITH EVERY NACE REQUIREMENT. PRODUCT CONDITION, HARDNESS, ENVIRONMENT, PROCESSING AND APPLICATION LIMITATIONS MUST BE EVALUATED AGAINST THE APPLICABLE EDITION AND REQUIREMENTS. VOESTALPINE LISTS NACE MR0175/ISO 15156 AMONG THE STANDARDS ASSOCIATED WITH BÖHLER L059) 21) ALLOY 59 STANDARDS BY PRODUCT FORM PRODUCT - COMMON SPECIFICATION ROUTE ROUND BAR: ASTM B574 / ASME SB-574 ROD: ASTM B574 / ASME SB-574 HEX BAR: APPLICABLE BAR SPECIFICATION/ORDER REQUIREMENTS SQUARE BAR: APPLICABLE BAR SPECIFICATION/ORDER REQUIREMENTS RECTANGULAR BAR: APPLICABLE BAR/FORGING SPECIFICATION FLAT BAR: APPLICABLE BAR/FORGING SPECIFICATION FORGED BAR: ASTM B564 / ASME SB-564 WHERE SPECIFIED FORGED BLOCK: ASTM B564 / ASME SB-564 WHERE SPECIFIED BILLET: MANUFACTURER/CUSTOMER SPECIFICATION PLATE: ASTM B575 / ASME SB-575 SHEET: ASTM B575 / ASME SB-575 STRIP: ASTM B575 / ASME SB-575 PIPE/TUBE: SEPARATE APPLICABLE ASTM/ASME TUBE/PIPE SPECIFICATION WELDING FILLER: APPLICABLE AWS/ASME FILLER-METAL SPECIFICATION DO NOT PUT EVERY PRODUCT SHAPE UNDER ASTM B574 BY DEFAULT. B574 IS SPECIFICALLY A ROD/BAR SPECIFICATION, WHILE B564 ADDRESSES FORGINGS AND B575 ADDRESSES PLATE, SHEET AND STRIP. 22) ALLOY 59 WELDING CONSIDERATIONS ALLOY 59 IS KNOWN FOR GOOD WELDABILITY AND LOW SUSCEPTIBILITY TO CERTAIN PRECIPITATION-RELATED PROBLEMS BECAUSE OF ITS LOW CARBON AND SILICON LEVELS. COMMERCIAL TECHNICAL INFORMATION IDENTIFIES WELDING AS ONE OF THE IMPORTANT ADVANTAGES OF THE ALLOY. POTENTIAL WELDING PRODUCTS INCLUDE ERNICRMO-13 FOR COMPATIBLE WELDING APPLICATIONS, BUT THE FILLER SELECTION SHOULD ALWAYS BE CONFIRMED AGAINST THE ACTUAL WELDING PROCEDURE, BASE MATERIAL, SERVICE ENVIRONMENT AND APPLICABLE CODE. 23) ALLOY 59 APPLICATIONS THE ALLOY IS PARTICULARLY ATTRACTIVE WHERE ORDINARY STAINLESS STEELS AND LOWER-ALLOY MATERIALS CANNOT PROVIDE SUFFICIENT CORROSION RESISTANCE. CHEMICAL PROCESSING • REACTORS • ACID-PROCESSING EQUIPMENT • PROCESS PIPING COMPONENTS • AGITATORS • HEAT EXCHANGERS • SCRUBBERS • VALVES • PUMPS ENVIRONMENTAL ENGINEERING • FGD EQUIPMENT • WASTE-INCINERATION SYSTEMS • FLUE-GAS SCRUBBERS • POLLUTION-CONTROL EQUIPMENT OIL & GAS • SOUR-SERVICE COMPONENTS • CORROSION-RESISTANT EQUIPMENT • PROCESS EQUIPMENT • SPECIALIZED DOWNHOLE COMPONENTS MARINE AND SEAWATER • SEAWATER COMPONENTS • CHLORIDE-BEARING EQUIPMENT • HIGH-CORROSION SERVICE COMPONENTS VDM SPECIFICALLY IDENTIFIES CHEMICAL, PETROCHEMICAL, ENERGY AND ENVIRONMENTAL ENGINEERING AS MAJOR APPLICATION AREAS. 24) HIGH-VOLUME KEYWORD CLUSTER FOR ALLOY 59 PRIMARY KEYWORDS • ALLOY 59 • ALLOY 59 BAR • ALLOY 59 ROUND BAR • ALLOY 59 ROD • UNS N06059 • N06059 ROUND BAR • N06059 BAR • NICKEL ALLOY 59 • 2.4605 • 2.4605 ROUND BAR • NICR23MO16AL • ALLOY 59 SUPPLIER • ALLOY 59 MANUFACTURER • ALLOY 59 STOCKIST SPECIFICATION KEYWORDS • ASTM B574 N06059 • ASTM B574 ALLOY 59 • ASME SB574 N06059 • ASTM B564 N06059 • ASME SB564 N06059 • ASTM B575 N06059 • DIN 17752 ALLOY 59 • DIN 17744 ALLOY 59 • VDTÜV 505 ALLOY 59 • NACE MR0175 N06059 • ISO 15156 N06059 PRODUCT-FORM KEYWORDS • ALLOY 59 HEX BAR • ALLOY 59 HEXAGON BAR • ALLOY 59 SQUARE BAR • ALLOY 59 FLAT BAR • ALLOY 59 RECTANGULAR BAR • ALLOY 59 HOLLOW BAR • ALLOY 59 FORGED BAR • ALLOY 59 FORGED BLOCK • ALLOY 59 BILLET • ALLOY 59 PRECISION BAR • ALLOY 59 COLD DRAWN BAR • ALLOY 59 GROUND BAR • ALLOY 59 TURNED BAR COMMERCIAL-INTENT KEYWORDS • ALLOY 59 BAR PRICE • ALLOY 59 ROUND BAR PRICE • ALLOY 59 BAR MANUFACTURER • ALLOY 59 BAR EXPORTER • ALLOY 59 BAR SUPPLIER INDIA • N06059 BAR SUPPLIER • N06059 ROUND BAR MANUFACTURER • 2.4605 BAR SUPPLIER • ASTM B574 BAR SUPPLIER • NICKEL ALLOY BAR MANUFACTURER • NICKEL ALLOY ROUND BAR SUPPLIER • CORROSION RESISTANT ALLOY BAR SUPPLIER INTERNATIONAL TERMINOLOGY • NICROFER 5923 HMO • VDM ALLOY 59 • BÖHLER L059 • NS3311 • H06059 • NICR23MO16AL BAR • WERKSTOFF 2.4605 • UNS N06059 MATERIAL 25) LONG-TAIL KEYWORDS FOR INTERNATIONAL SEARCH VISIBILITY, THE FOLLOWING LONG-TAIL PHRASES ARE ESPECIALLY USEFUL: • ASTM B574 UNS N06059 ALLOY 59 ROUND BAR MANUFACTURER • ALLOY 59 UNS N06059 ROUND BAR SUPPLIER • 2.4605 NICR23MO16AL ROUND BAR MANUFACTURER • ALLOY 59 NICKEL ALLOY BAR ASTM B574 • N06059 CORROSION RESISTANT ROUND BAR • ALLOY 59 FORGED BAR ASTM B564 • ALLOY 59 HEXAGONAL BAR SUPPLIER • ALLOY 59 SQUARE BAR MANUFACTURER • ALLOY 59 RECTANGULAR BAR SUPPLIER • ALLOY 59 FLAT BAR MANUFACTURER • ALLOY 59 HOLLOW BAR MANUFACTURER • NICROFER 5923 HMO EQUIVALENT • ALLOY 59 EQUIVALENT UNS N06059 • 2.4605 EQUIVALENT MATERIAL • NICR23MO16AL EQUIVALENT • ALLOY 59 CHEMICAL COMPOSITION • ALLOY 59 MECHANICAL PROPERTIES • ALLOY 59 ASTM SPECIFICATION • ALLOY 59 DIN SPECIFICATION • ALLOY 59 VDTÜV 505 • ALLOY 59 NACE MR0175 • ALLOY 59 NICKEL CHROMIUM MOLYBDENUM ALLOY 26) HOW TO SPECIFY ALLOY 59 BAR ON A PURCHASE ORDER A TECHNICALLY STRONG PURCHASE DESCRIPTION SHOULD INCLUDE: MATERIAL: ALLOY 59 / UNS N06059 WERKSTOFF: 2.4605 EN: NICR23MO16AL PRODUCT: ROUND / HEX / SQUARE / FLAT / RECTANGULAR / HOLLOW / FORGED BAR SPECIFICATION: ASTM B574 OR APPLICABLE FORGING/PRODUCT STANDARD CONDITION: SOLUTION ANNEALED FINISH: PICKLED / GROUND / TURNED / COLD FINISHED DIMENSIONS: DIAMETER OR A × B × THICKNESS LENGTH: FIXED OR RANDOM LENGTH TESTING: CHEMICAL + TENSILE + HARDNESS + NDT AS REQUIRED CERTIFICATION: EN 10204 3.1 OR 3.2, WHERE CONTRACTUALLY REQUIRED SPECIAL REQUIREMENTS: NACE / SOUR SERVICE / CUSTOMER SPECIFICATION WHERE APPLICABLE THIS ELIMINATES AMBIGUITY BETWEEN ALLOY DESIGNATION AND PRODUCT SPECIFICATION. 27) QUALITY CONTROL CHECKLIST FOR ALLOY 59 BARS A PROFESSIONAL ALLOY 59 MANUFACTURER SHOULD CONTROL: RAW-MATERIAL CONTROL → HEAT IDENTIFICATION → MELTING → ESR → BILLET INSPECTION → HOMOGENIZATION → HOT WORKING → SOLUTION ANNEALING → DESCALING → STRAIGHTENING → SURFACE INSPECTION → DIMENSIONAL INSPECTION → MECHANICAL TESTING → CHEMICAL ANALYSIS → NDT → PMI WHERE SPECIFIED → MARKING → TRACEABILITY → MTC EVERY FINISHED BAR SHOULD REMAIN TRACEABLE TO ITS ORIGINAL HEAT/LOT WHEREVER THE GOVERNING SPECIFICATION REQUIRES IT. 28) ALLOY 59 BAR MANUFACTURING: WHY TRACEABILITY MATTERS FOR HIGH-VALUE NICKEL ALLOYS, TRACEABILITY IS NOT MERELY AN ADMINISTRATIVE FEATURE. THE PURCHASER SHOULD BE ABLE TO ESTABLISH: HEAT NUMBER → BILLET → FORGING/ROLLING BATCH → HEAT TREATMENT → INSPECTION → FINISHED BAR → MATERIAL CERTIFICATE THIS BECOMES PARTICULARLY IMPORTANT FOR: • CHEMICAL PLANTS • OIL & GAS • PRESSURE EQUIPMENT • SOUR-SERVICE APPLICATIONS • PHARMACEUTICAL PLANTS • NUCLEAR/ENERGY-RELATED APPLICATIONS • CRITICAL CORROSION-RESISTANT EQUIPMENT 29) ALLOY 59 VS STAINLESS STEEL ALLOY 59 SHOULD NOT BE CONSIDERED SIMPLY A 'PREMIUM STAINLESS STEEL.' IT IS A NICKEL-BASED CORROSION-RESISTANT ALLOY ENGINEERED FOR SUBSTANTIALLY MORE DEMANDING ENVIRONMENTS THAN CONVENTIONAL STAINLESS GRADES. ITS COMBINATION OF APPROXIMATELY 23% CHROMIUM AND 16% MOLYBDENUM, TOGETHER WITH VERY LOW CARBON AND SILICON, PROVIDES A CORROSION-RESISTANCE PROFILE APPROPRIATE FOR AGGRESSIVE CHEMICAL ENVIRONMENTS. 30. FINAL MANUFACTURING SUMMARY THE HIGH-QUALITY MANUFACTURE OF ALLOY 59 BAR, UNS N06059 / 2.4605 / NICR23MO16AL IS A CONTROLLED METALLURGICAL PROCESS RATHER THAN A SIMPLE BAR-FORMING OPERATION. THE PREFERRED MANUFACTURING PHILOSOPHY IS: HIGH-PURITY RAW MATERIALS ↓ CONTROLLED MELTING ↓ ESR / REFINING ↓ HIGH-QUALITY BILLET ↓ HOMOGENIZATION ↓ CONTROLLED HOT FORGING OR ROLLING ↓ SOLUTION ANNEALING ↓ RAPID CONTROLLED COOLING ↓ PICKLING / DESCALING ↓ COLD FINISHING WHERE REQUIRED ↓ GRINDING / TURNING / POLISHING ↓ STRAIGHTENING ↓ DIMENSIONAL INSPECTION ↓ CHEMICAL ANALYSIS ↓ MECHANICAL TESTING ↓ NDT WHERE SPECIFIED ↓ POSITIVE MATERIAL IDENTIFICATION / TRACEABILITY ↓ MTC AND FINAL INSPECTION ↓ ALLOY 59 FINISHED BAR FOR STANDARD ROD AND BAR PROCUREMENT, ASTM B574 IS THE PRINCIPAL ASTM REFERENCE FOR UNS N06059, WHILE ASTM B564 APPLIES TO FORGINGS AND ASTM B575 APPLIES TO PLATE, SHEET AND STRIP. DIN 17744/17752, VDTÜV 505 AND NACE MR0175/ISO 15156 CAN ALSO BE RELEVANT DEPENDING ON PRODUCT AND SERVICE REQUIREMENTS. RECOMMENDED TITLE ALLOY 59 BAR MANUFACTURING GUIDE: UNS N06059, 2.4605 NICR23MO16AL ROUND, HEX, SQUARE, FLAT, RECTANGULAR & HOLLOW BAR | ASTM B574 RECOMMENDED META DESCRIPTION COMPLETE ALLOY 59 BAR MANUFACTURING GUIDE COVERING UNS N06059, 2.4605, NICR23MO16AL, NICROFER 5923 HMO, ASTM B574, ASTM B564, DIN 17752, VDTÜV 505, NACE MR0175, ROUND, HEX, SQUARE, FLAT, RECTANGULAR, HOLLOW BAR, BILLET AND FORGED BLOCK PRODUCTION. PRIMARY ENTITY: ALLOY 59 / UNS N06059 / 2.4605 / NICR23MO16AL PRIMARY COMMERCIAL KEYWORD: ALLOY 59 ROUND BAR PRIMARY SPECIFICATION KEYWORD: ASTM B574 UNS N06059 SECONDARY COMMERCIAL KEYWORDS: N06059 BAR, 2.4605 BAR, ALLOY 59 HEX BAR, ALLOY 59 SQUARE BAR, ALLOY 59 FLAT BAR, ALLOY 59 HOLLOW BAR, ALLOY 59 FORGED BAR
